Fire Behaviour:
IEC 60332-1-2, Flame Retardant, Flame resistance according to UL, Low Smoke Zero Halogen, IEC 60332-1
Conductor Material:
Tin Copper Wire
Cable Type:
Flat
Number of Conductors:
50
Core Strands:
7
Screened/Unscreened:
Unscreened
American Wire Gauge:
28AWG
Standards/Approvals:
UL1581 VW-1, RoHS, DEF STAN 61-12 Part 6, BS4109, DIN 47100, IEC 60227-5, VD0281-5, HAR, BS4808, BS EN13062, REACH, TS 9760 HD 21.5.S3, CENELEC HD21.5, UL, IEC 60228 Css 5, VD0295 part 5, Mil Spec, DEF STAN, ISO9001, BASEC, VD2050, IEC60332-1, CE, IEC60332-1-2
Voltage:
300 V
Minimum Operating Temperature:
-20°C
Pitch:
1.27mm
Hi-Flex:
Yes

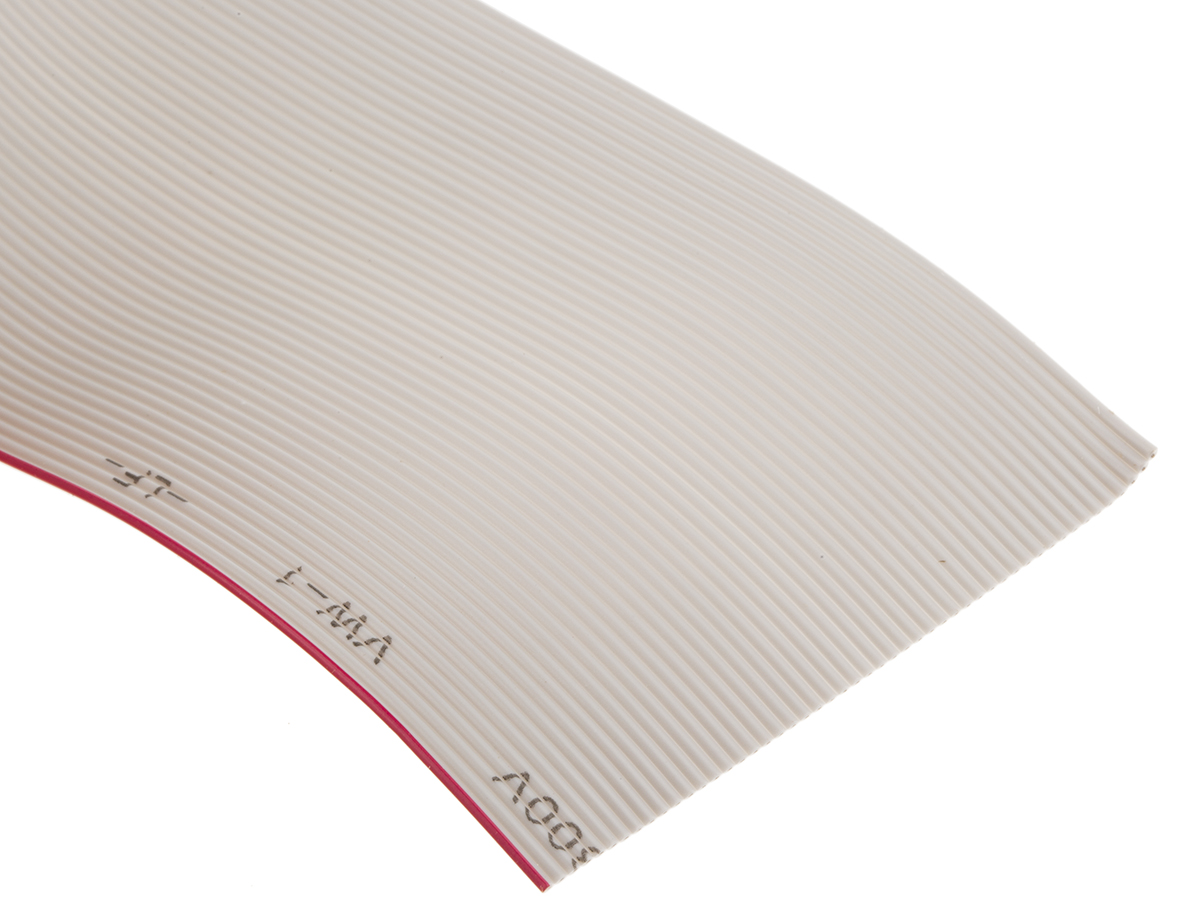

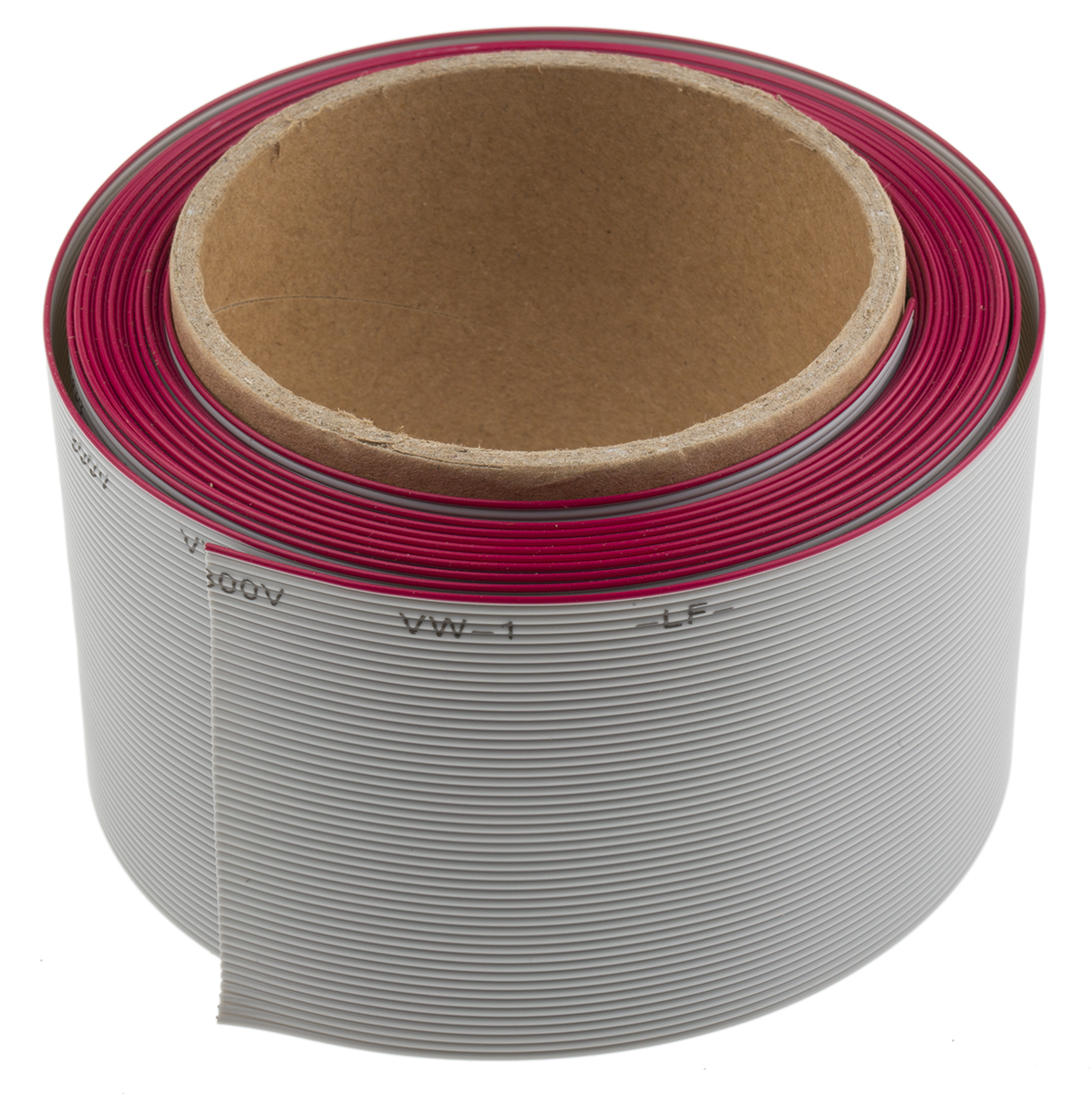

Product Type:
Ribbon Cable
Maximum Operating Temperature:
105°C
Cable Length:
234m
