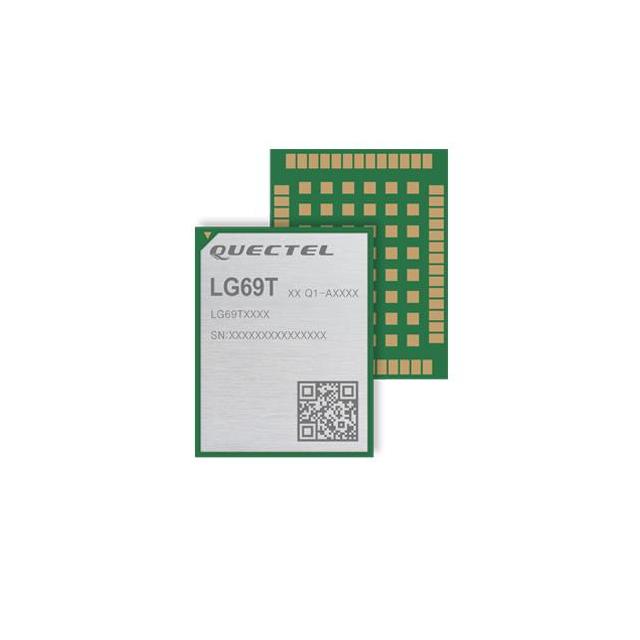

Quectel LG69TAAMD

LG69TAAMD Quectel
Quectel

Product Information

HTSUS:
8517.62.0090
RoHS Status:
RoHS Compliant
DigiKey Programmable:
Not Verified
Operating Temperature:
-
Memory Size:
-
Package / Case:
Module
Current - Transmitting:
-
Current - Receiving:
-
Modulation:
-
edacadModel:
LG69TAAMD Models
Data Rate:
-
edacadModelUrl:
/en/models/13278309
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Navigation
Protocol:
BeiDou, Galileo, GLONASS, GPS, GNSS
Utilized IC / Part:
-
Mounting Type:
Surface Mount
Antenna Type:
Antenna Not Included
Series:
-
Sensitivity:
-
Serial Interfaces:
I2C, SPI, UART
Frequency:
-
Voltage - Supply:
-
Power - Output:
-
Base Product Number:
LG69
ECCN:
7A994
Checking for live stock

This is manufactured by Quectel. The manufacturer part number is LG69TAAMD. It is assigned with possible HTSUS value of 8517.62.0090. The product is rohs compliant. Moreover, the product comes in module. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes navigation. The product features a beidou, galileo, glonass, gps, gnss protocol. The product is available in surface mount configuration. It is a antenna not included antenna. It features i2c, spi, uart serial interface. Moreover, it corresponds to lg69, a base product number of the product. The product is designated with the 7a994 code number.

pdf icon
LG69T Series ASSY 17/Nov/2023(PCN Assembly/Origin)
pdf icon
Android GNSS Driver Guide(Manuals)
pdf icon
LG69TAx 14/Sep/2022(PCN Design/Specification)
pdf icon
LG69TAx 02/Aug/2022(PCN Design/Specification)
pdf icon
LG69T Spec.(Datasheets)
pdf icon
All Parts Pkg Chgs 1/Nov/2021(PCN Packaging)
