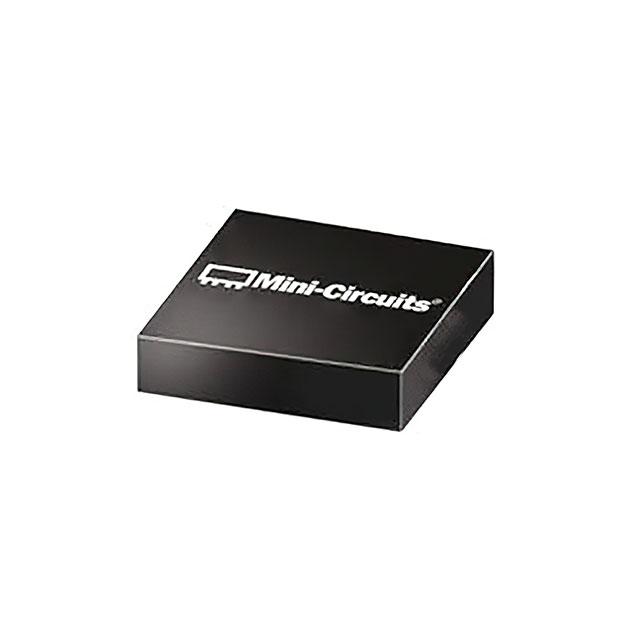

Mini-Circuits JSW4-272DR+

JSW4-272DR- Mini-Circuits JSW4-272DR+
Mini-Circuits

Product Information

Frequency Range:
5MHz ~ 2.7GHz
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Package / Case:
14-UFQFN Exposed Pad
Insertion Loss:
0.6dB
REACH Status:
REACH Unaffected
RF Type:
CATV, SatCom
P1dB:
-
Impedance:
50Ohm
Topology:
Reflective
IIP3:
59dBm
Package:
Tape & Reel (TR)
Isolation:
27dB
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SP4T
standardLeadTime:
13 Weeks
Features:
-
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
14-QFN (2x2)
Test Frequency:
2.7GHz
Voltage - Supply:
2.5V ~ 4.8V
ECCN:
EAR99
Checking for live stock

This is manufactured by Mini-Circuits. The manufacturer part number is JSW4-272DR+. The frequency range includes 5mhz ~ 2.7ghz. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 14-ufqfn exposed pad. Allows 0.6db of insertion loss. In addition, it is reach unaffected. This is a sort of catv, satcom RF. It has an impedance value of 50ohm. Topology includes reflective. The IIP3 value of 59dbm. It is shipped in tape & reel (tr) package . Features a 27db isolation. Its typical moisture sensitivity level is 1 (unlimited). It has an integral sp4t circuit. It has a long 13 weeks standard lead time. The product is available in surface mount configuration. 14-qfn (2x2) is the supplier device package value. It features a test frequency of 2.7ghz. It has optimum voltage supply of 2.5v ~ 4.8v. The product is designated with the ear99 code number.

pdf icon
JSW4-272DR+(Datasheets)
