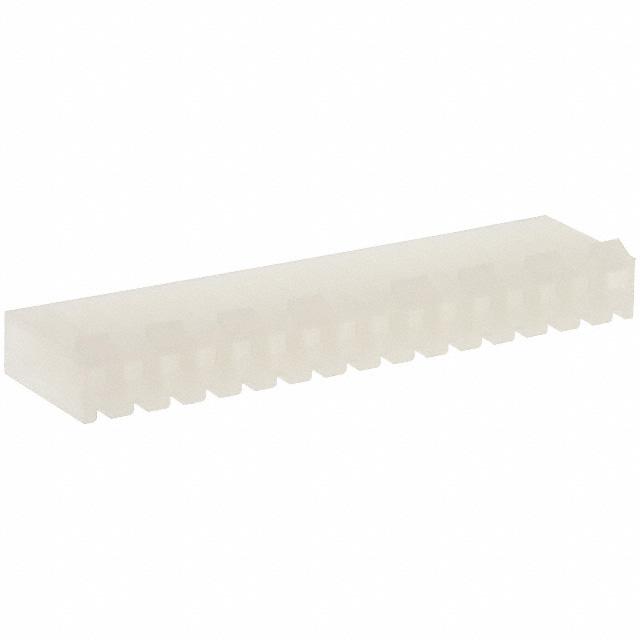

Molex 0009503161

0009503161 Molex
0009503161
Molex

Product Information

HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Note:
Contacts Not Included
Operating Temperature:
-
Number of Positions:
16
REACH Status:
REACH Unaffected
edacadModel:
0009503161 Models
Number of Rows:
1
edacadModelUrl:
/en/models/259387
Package:
Bulk
Connector Type:
Receptacle
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Non-Gendered
Fastening Type:
Locking Ramp
standardLeadTime:
29 Weeks
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Natural
Series:
KK396, 2139
Insulation Material:
Polyamide (PA), Nylon
Pitch:
0.156" (3.96mm)
Row Spacing:
-
Contact Termination:
Crimp
Base Product Number:
000950
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0009503161. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Note: contacts not included. The product carries possible position value of 16. In addition, it is reach unaffected. It comes in 1 of rows. It is shipped in bulk package . receptacle Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of non-gendered. Furthermore, locking ramp is the Fastening Type of the product. It has a long 29 weeks standard lead time. The product is available in free hanging (in-line) configuration. It has a classic natural colour. The product kk396, 2139, is a highly preferred choice for users. It has a robust polyamide (pa), nylon insulation material. Moreover, the product is 0.156" (3.96mm). It also incorporates crimp contact terminals. Moreover, it corresponds to 000950, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
09-50-3161 RoHS Cert of Compliance(Environmental Information)
pdf icon
Circuit ID Update 22/Dec/2014(PCN Design/Specification)
pdf icon
09-50-3161(Datasheets)
pdf icon
09-50-3161.pdf(3D Drawings)
