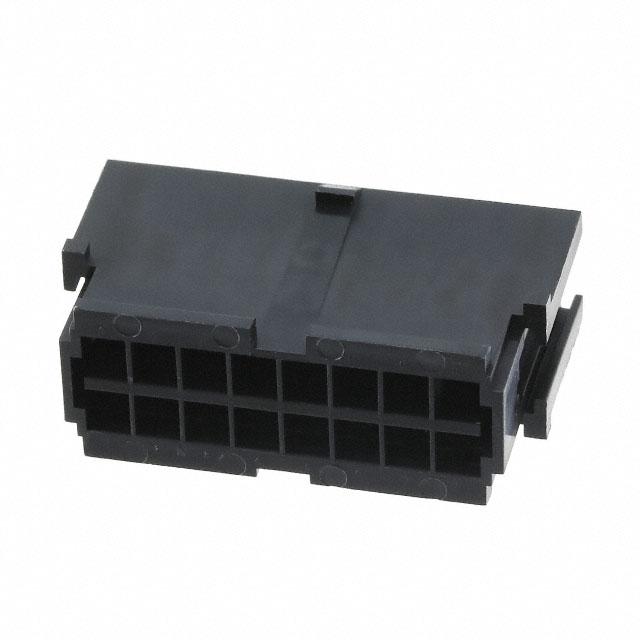

Molex 0015976161

0015976161 Molex
0015976161
Molex

Product Information

HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Note:
Contacts Not Included
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
16
REACH Status:
REACH Unaffected
edacadModel:
0015976161 Models
Number of Rows:
2
edacadModelUrl:
/en/models/3157061
Package:
Bulk
Connector Type:
Plug
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
standardLeadTime:
13 Weeks
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Black
Series:
Mini-Fit TPA 30068
Insulation Material:
Polyester
Pitch:
0.165" (4.20mm)
Row Spacing:
0.217" (5.51mm)
Contact Termination:
Crimp
Base Product Number:
001597
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0015976161. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Note: contacts not included. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 16. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in bulk package . plug Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. It has a long 13 weeks standard lead time. The product is available in free hanging (in-line) configuration. It has a classic black colour. The product mini-fit tpa 30068, is a highly preferred choice for users. It has a robust polyester insulation material. Moreover, the product is 0.165" (4.20mm). The space between it rows includes 0.217" (5.51mm). It also incorporates crimp contact terminals. Moreover, it corresponds to 001597, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
15976161 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Cancel Location Change 11/Jul/2022(PCN Assembly/Origin)
pdf icon
Various Series Supplier Change 23/Jul/2014(PCN Other)
pdf icon
0015976161(Datasheets)
pdf icon
Mini-Fit Roadmap(Datasheets)
pdf icon
15-97-6161.pdf(3D Drawings)
pdf icon
0015976yyy Drawing(Product Drawings)
