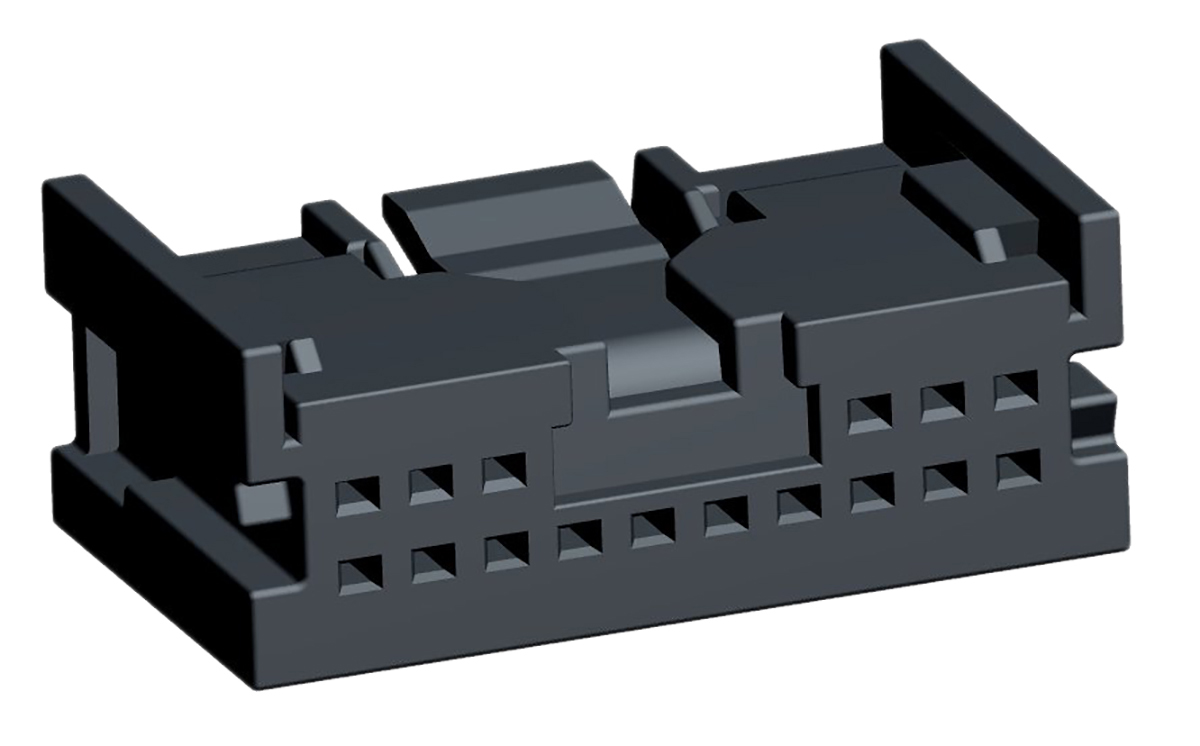

Molex Mini50 Series, 34824 Series Number, 2 Row 16 Way Free Hanging Socket Crimp Housing

34824-0160 Molex Mini50 Series, 34824 Series Number, 2 Row 16 Way Free Hanging Socket Crimp Housing
Molex

Product Information

The Molex Mini50 Series 34824 is a compact, reliable rectangular connector housing with a 2-row, 16-way design for secure crimping and easy hanging. The 34824-0160 is a versatile and robust rectangular housing perfect for a wide range of applications with its 2 rows, 16-way socket crimp design.

  •
Mounting Type:
Free Hanging
Gender:
Female
Colour:
Black
Termination Method:
Crimp
Height:
9.43mm
Housing Material:
PBT
Width:
24.1mm
Depth:
14.25mm
Number of Rows:
2
Minimum Operating Temperature:
-40°C
Series:
Mini50
Number of Contacts:
16
Type:
Crimp Housing
Maximum Operating Temperature:
+105°C
Series Number:
34824
Package:
Bulk
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The Mini50 series 2 Row 16 Way Free Hanging Socket Crimp Housing, part number 34824-0160, is a compact and versatile solution for connecting wires and cables in electronic devices. The 34824-0160, Molex features a small form factor, high-density configuration, and durable design, making it an excellent choice for applications where space is limited and reliability is critical.

Design and Features of 34824-0160, Molex Black Free Hanging Socket Crimp Housing:

  • The Molex Mini50 series 2 Row 16 Way Free Hanging Socket Crimp Housing is designed to accommodate 16 contacts arranged in a 2-row configuration.
  • The socket housing features a latch mechanism that ensures secure mating with the corresponding header.
  • The latch is easy to operate and provides audible and tactile feedback, indicating a successful connection.
  • The housing is made of high-quality plastic material that provides excellent durability and resistance to environmental factors such as moisture, heat, and chemicals.
  • The plastic material is also lightweight, making the housing suitable for applications where weight is critical.
  • The socket contacts are designed for crimp termination and are suitable for wire gauges ranging from 22 to 28 AWG.
  • The crimp contacts provide a reliable and gas-tight connection with the wires, ensuring optimal signal transmission and preventing electrical interference.

34824-0160, Molex, Black - Free Hanging Socket Crimp Housing: Typical Applications

  • The Molex Mini50 series 2 Row 16 Way Free Hanging Socket Crimp Housing is suitable for a wide range of applications, including automotive, industrial, and consumer electronics.
  • The connector's small form factor and high-density configuration make it ideal for applications where space is limited, such as in automotive wiring harnesses, dashboard controls, and sensors.
  • The housing's resistance to environmental factors makes it suitable for harsh environments, such as industrial machinery and outdoor equipment.
  • The connector's reliability and durability also make it suitable for consumer electronics, such as smartphones and tablets, where users demand high-quality and long-lasting products.

pdf icon
Mini50 Automotive Connector, receptacle housing, 16P(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 34824-0160 on website for other similar products.
We accept all major payment methods for all products including ET14022618. Please check your shopping cart at the time of order.
You can order Molex brand products with 34824-0160 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rectangular Connector Housings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex Mini50 Series, 34824 Series Number, 2 Row 16 Way Free Hanging Socket Crimp Housing. You can also check on our website or by contacting our customer support team for further order details on Molex Mini50 Series, 34824 Series Number, 2 Row 16 Way Free Hanging Socket Crimp Housing.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14022618 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14022618.
Yes. We ship 34824-0160 Internationally to many countries around the world.
