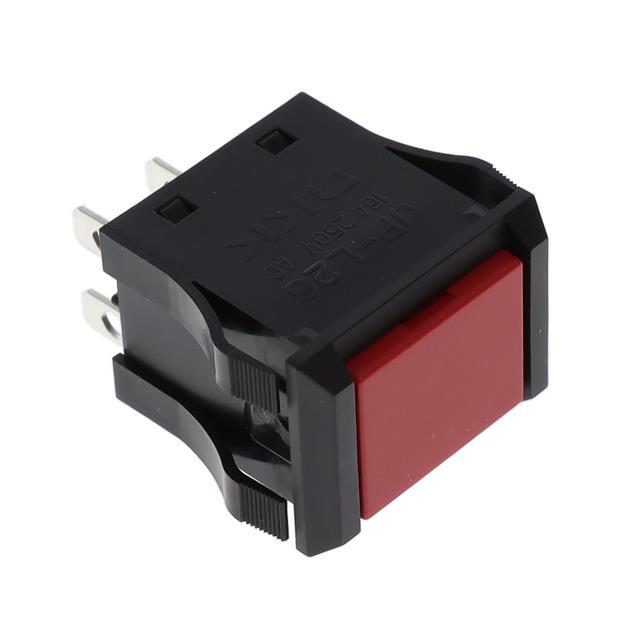

NKK Switches JPL26B-C

JPL26B-C NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9035
RoHS Status:
ROHS3 Compliant
Electrical Life:
25,000 Cycles
Termination Style:
Solder Lug
Operating Temperature:
-10°C ~ 70°C
Panel Cutout Dimensions:
Rectangular - 28.00mm x 21.20mm
Mechanical Life:
25,000 Cycles
Type:
Standard
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
JPL26B-C Models
edacadModelUrl:
/en/models/1053248
Illumination Type, Color:
-
Package:
Tray
Switch Function:
Off-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
DPST
standardLeadTime:
15 Weeks
Current Rating (Amps):
16A (AC)
Ingress Protection:
-
Features:
Tactile Feedback
Mounting Type:
Panel Mount, Snap-In
Series:
JP
Color - Actuator/Cap:
Red
Actuator Type:
Rectangular, Button
Illumination Voltage (Nominal):
-
Base Product Number:
JPL26B
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JPL26B-C. It is assigned with possible HTSUS value of 8536.50.9035. The product is rohs3 compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has solder lug terminal style. The product has -10°c ~ 70°c operating temperature range. It also has a rectangular - 28.00mm x 21.20mm dimensional features. The product also provide mechanical stability with 25,000 cycles. It comes in standard configuration. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in tray package . It is designed as a off-on switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral dpst circuit. It has a long 15 weeks standard lead time. Additionally, the product's output is 16a (ac). The splendid features of the product include tactile feedback. The product is available in panel mount, snap-in configuration. The product jp, is a highly preferred choice for users. It is made from red. The product carries rectangular, button actuator. Moreover, it corresponds to jpl26b, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
JPM,JPL Pushbuttons 20/Oct/2017(PCN Assembly/Origin)
pdf icon
JPM/JPL Pushbuttons Stationary Contacts Material 11/Aug/2016(PCN Design/Specification)
pdf icon
JP Series Datasheet(Datasheets)
