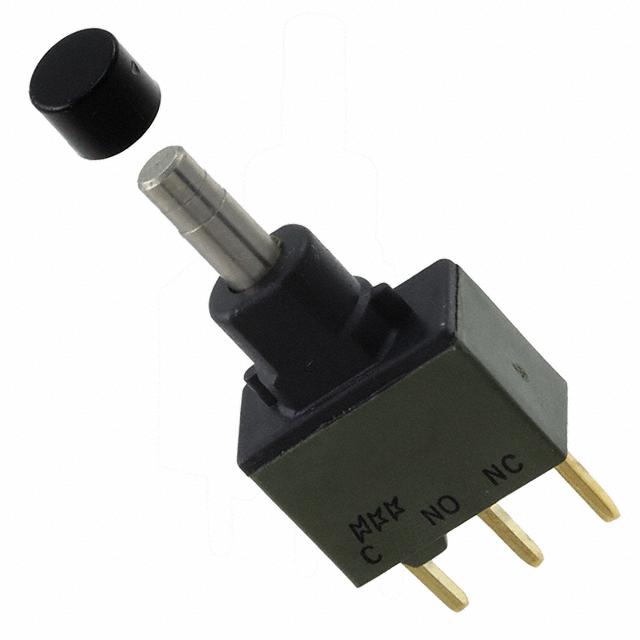

NKK Switches M2B15AA5G03-FA

M2B15AA5G03-FA NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
100,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
-
Mechanical Life:
200,000 Cycles
Type:
Standard
title:
M2B15AA5G03-FA
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
M2B15AA5G03-FA Models
edacadModelUrl:
/en/models/1054295
Illumination Type, Color:
-
Switch Function:
On-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
M2
Packaging:
Tray
Color - Actuator/Cap:
Black
Actuator Type:
Round, Button
Illumination Voltage (Nominal):
-
Base Product Number:
M2B15AA
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is M2B15AA5G03-FA. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. The product offers long-lasting services of 100,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. The product also provide mechanical stability with 200,000 cycles. It comes in standard configuration. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is designed as a on-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include process sealed. The product is available in through hole configuration. The product m2, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It is made from black. The product carries round, button actuator. Moreover, it corresponds to m2b15aa, a base product number of the product. The product is designated with the ear99 code number.
