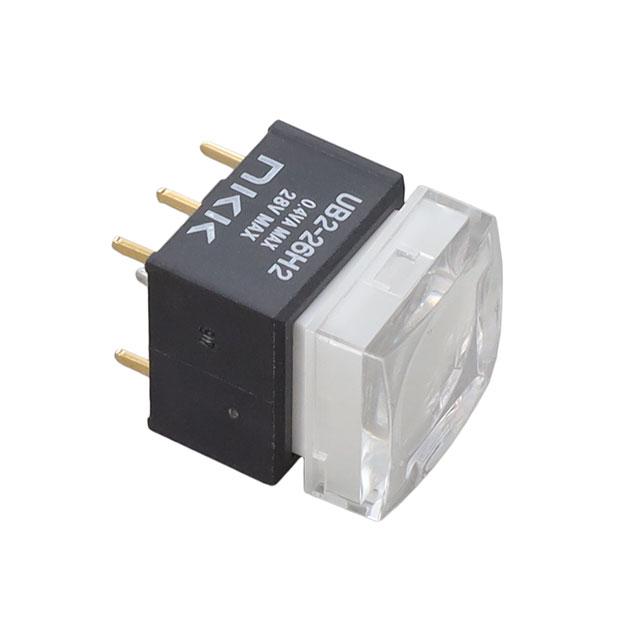

NKK Switches UB226SKG036G-1JB

UB226SKG036G-1JB NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9033
RoHS Status:
ROHS3 Compliant
Electrical Life:
200,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-25°C ~ 50°C
Panel Cutout Dimensions:
-
Mechanical Life:
200,000 Cycles
Type:
Standard, Illuminated
title:
UB226SKG036G-1JB
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
UB226SKG036G-1JB Models
edacadModelUrl:
/en/models/2106935
Illumination Type, Color:
LED, Blue
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
DPDT
standardLeadTime:
20 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Sealed - Fully
Mounting Type:
Through Hole
Series:
UB2
Packaging:
Bulk
Color - Actuator/Cap:
Clear (White Filter/Diffuser)
Actuator Type:
Square, Button
Illumination Voltage (Nominal):
2.9 VDC
Base Product Number:
UB226SK
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is UB226SKG036G-1JB. It is assigned with possible HTSUS value of 8536.50.9033. The product is rohs3 compliant. The product offers long-lasting services of 200,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -25°c ~ 50°c operating temperature range. The product also provide mechanical stability with 200,000 cycles. It comes in standard, illuminated configuration. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with led, blue illumination. It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral dpdt circuit. It has a long 20 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include sealed - fully. The product is available in through hole configuration. The product ub2, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It is made from clear (white filter/diffuser). The product carries square, button actuator. The nominal illumination voltage of the product is 2.9 vdc. Moreover, it corresponds to ub226sk, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
LED chg 02/SEP/2022(PCN Design/Specification)
pdf icon
UB2 Series Product Improvement 31/Oct/2022(PCN Design/Specification)
pdf icon
UB2 Indicators(Datasheets)
pdf icon
UB2 Series Datasheet(Datasheets)
