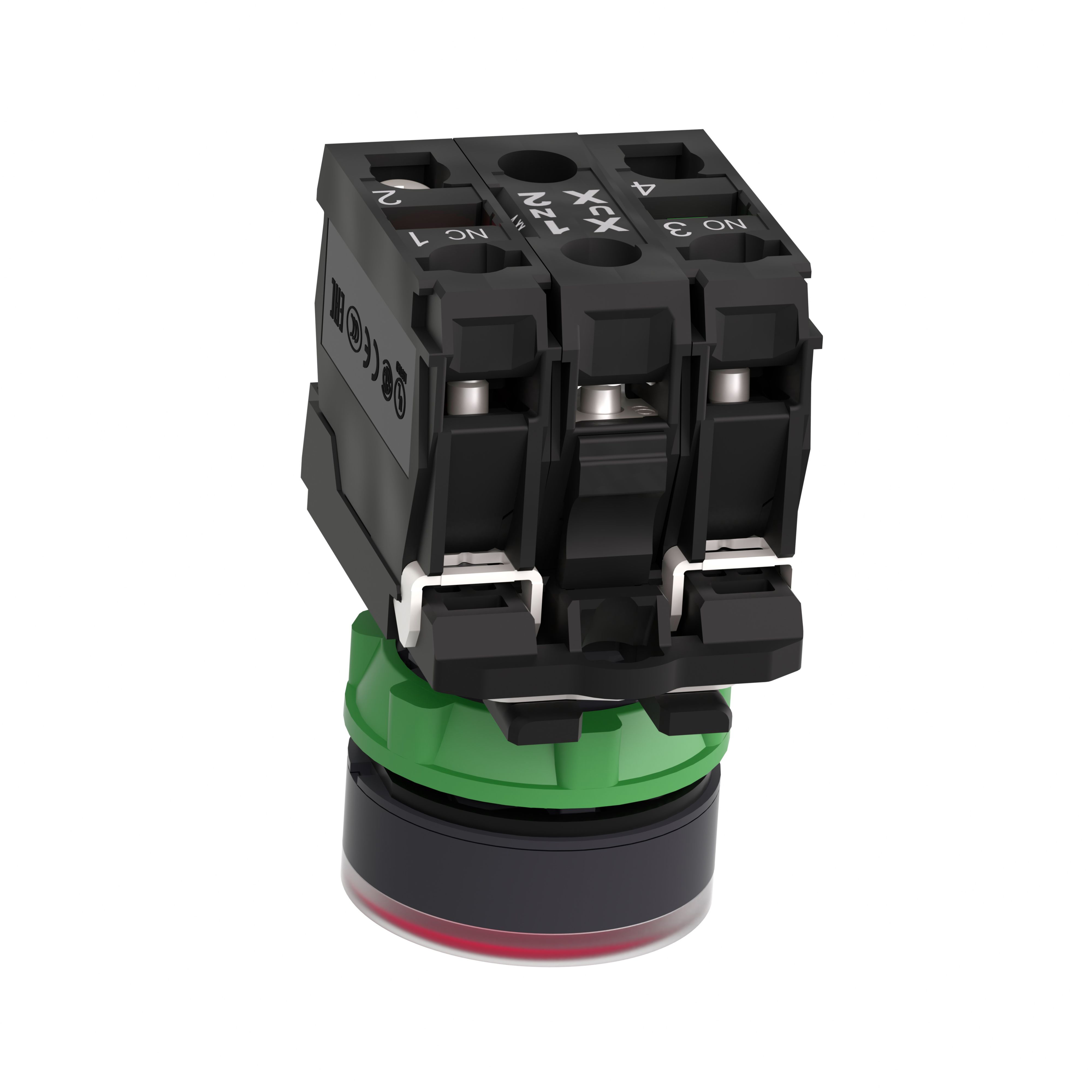

Schneider Electric Harmony XB5 Illuminated Red Push Button NO/NC Spring Return

Enrgtech Part No: ET16748731
|
Manufacturer Part No:
XB5AW34M5
|
Manufacturer: Schneider Electric

XB5AW34M5 Schneider Electric Harmony XB5 Illuminated Red Push Button NO/NC Spring Return

Product Information

Actuator Colour:

Red

Mount Type:

Panel

Legend:

Blank

Width:

30mm

Actuator Style:

Round

Illuminated:

Yes

Product Type:

Push Button Switch

Maximum Operating Temperature:

70?C

Terminal Type:

Screw

Minimum Operating Temperature:

-25?C

Contact AC Voltage:

240V ac

Switch Configuration:

1 NO/1 NC

warehouse-3

Pre-order available

Ask for lead time

Quantity

Unit Price (ex VAT)

Price

£ 10.55

Mfr Part No:

XB5AW34M5

Seller:

Schneider Electric (warehouse-3)

Origin:

Warranty:

Manufacturer

Data Code:

ET16748731

Order Today!

From: United Kingdom

Quantity Quantity

The Schneider Electric XB5AW34M5 is a high-performance illuminated pushbutton switch from the Harmony XB5 series. This 22 mm red flush unit features a durable plastic bezel and a spring-return mechanism. It utilises an integral LED for bright, energy-efficient signalling in industrial environments. The device is designed for 230V to 240V AC operations. Its modular construction allows for easy installation into standard panel cutouts. The product ensures reliable motor control and status feedback.

Main Benefits of Using This Product

The integrated LED on the Schneider Electric XB5AW34M5 push-button switch provides excellent visibility from a distance. Its robust plastic construction offers high resistance to chemical agents and corrosion.

Enhances operator safety through clear visual feedback and ergonomic design.
Simplifies cleaning in harsh environments with its IP69K washdown rating.

Notable Features & Technical Information

Mounting Diameter: 22.5 mm.
Operator Profile: Red flush (unmarked).
Light Source: Universal LED (Integral).
Voltage Rating: 230...240 V AC (50/60 Hz).
Contact Configuration: 1 NO + 1 NC.
Protection Rating: IP66, IP67, IP69, IP69K.
Mechanical Durability: 10,000,000 cycles.
Bezel Material: Dark grey plastic.

New Harmony Leaflet(Technical Reference)

Product Environmental Profile(Technical Reference)

Instruction Sheet - ZB4/ZB5 Series(Technical Reference)

Datasheet_XB5AW34M5(Technical Reference)

Harmony Control and Signaling Guide(Technical Reference)

Harmony Led 2023 Changes EN(Technical Reference)
