NKK Switches JF15RP3GC

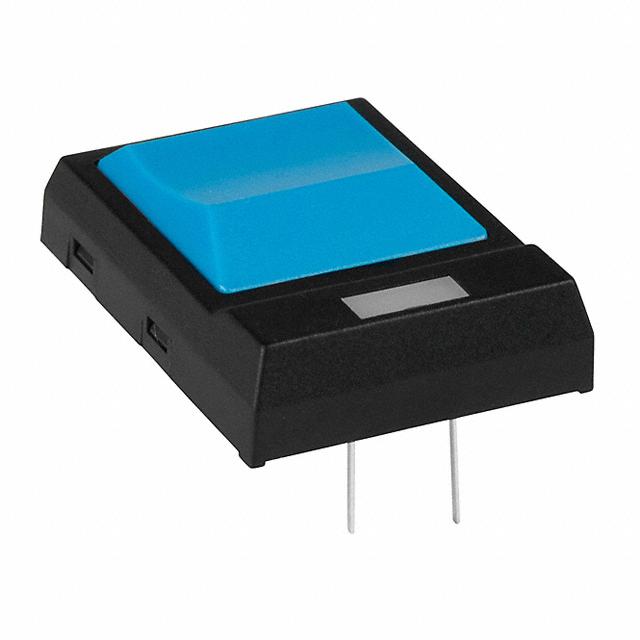

JF15RP3GC NKK Switches
JF15RP3GC
NKK Switches

Product Information

Illuminated:
Yes
Mounting Type:
Through Hole
Contact Current Rating:
50 mA
Contact Configuration:
SPST
Contact DC Voltage Rating:
24V
Push Button Style:
Square
LED Colour:
Red
Push Button Colour:
Blue
Manufacturer Part No.:
JF15RP3GC
Switch Operation:
Off-(On)
Terminal Type:
PC Pin
Contact Material:
Brass (Stationary), Phosphor Bronze (Movable)
Operating Force:
200gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
6.78mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
JF15RP3GC Models
edacadModelUrl:
/en/models/1058498
Illumination Type, Color:
LED, Red
Outline:
22.80mm x 17.70mm
Package:
Tray
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JF
Switch Travel:
0.80mm
Actuator Type:
Square Button
Illumination:
Illuminated
Illumination Voltage (Nominal):
2 VDC
Actuator Material:
Polyamide (PA), Nylon
Base Product Number:
JF15RP3G
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JF15RP3GC. Illumination Option yes. The product is available in through hole configuration. The rated contact current is 50 ma. The contact is equipped with spst configuration. It has about 24v contact DC voltage rating . This pushbutton has a square style pushbutton and is easy to use. The LED has an adorable red colour. While it has an adorable blue colour. The product has an assigned jf15rp3gc manufacturer part number. It provides off-(on) switch operation. The terminal is a pc pin type. The product is made from sturdy brass (stationary), phosphor bronze (movable) materials. It has a 200gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 6.78mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. In addition, it is reach unaffected. It is supplied with led, red illumination. The given outline of the product is 22.80mm x 17.70mm. It is shipped in tray package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 18 weeks standard lead time. The splendid features of the product include process sealed. The product jf, is a highly preferred choice for users. The product has a switching travel of 0.80mm. The product carries square button actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 2 vdc. The actuator is designed from sturdy polyamide (pa), nylon material. Moreover, it corresponds to jf15rp3g, a base product number of the product. The product is designated with the ear99 code number.
