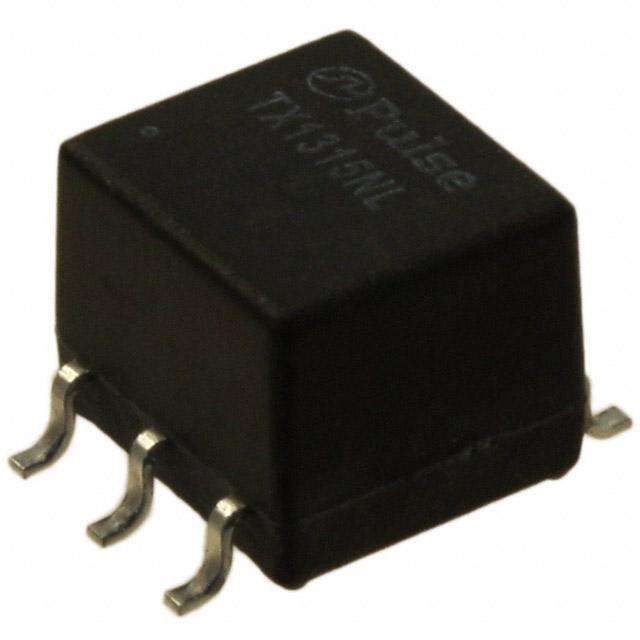

Pulse Electronics TX1315NLT

TX1315NLT Pulse Electronics
Pulse Electronics

Product Information

HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Height - Seated (Max):
0.250" (6.35mm)
title:
TX1315NLT
REACH Status:
REACH Unaffected
edacadModel:
TX1315NLT Models
Inductance:
1.2mH
edacadModelUrl:
/en/models/2265598
Manufacturer:
Pulse Electronics
ET (Volt-Time):
-
Size / Dimension:
0.300" L x 0.276" W (7.62mm x 7.00mm)
Turns Ratio - Primary:Secondary:
1CT:1CT
standardLeadTime:
11 Weeks
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Transformer Type:
T1/E1 (Single)
Mounting Type:
Surface Mount
Weight:
0.02 oz (0.57 g)
Series:
-
Packaging:
Tape & Reel (TR)
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is TX1315NLT. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. It has the maximum seated height of 0.250" (6.35mm). In addition, it is reach unaffected. The product has a 1.2mh inductance value. The pulse electronics's product offers user-desired applications. The product's diameters include 0.300" l x 0.276" w (7.62mm x 7.00mm). The typical primary and secondary turn ratio is 1ct:1ct. It has a long 11 weeks standard lead time. Its typical moisture sensitivity level is 3 (168 hours). It is a t1/e1 (single) transformer. The product is available in surface mount configuration. The typical product's weight is 0.02 oz (0.57 g). In addition, tape & reel (tr) is the available packaging type of the product. The product is designated with the ear99 code number.
