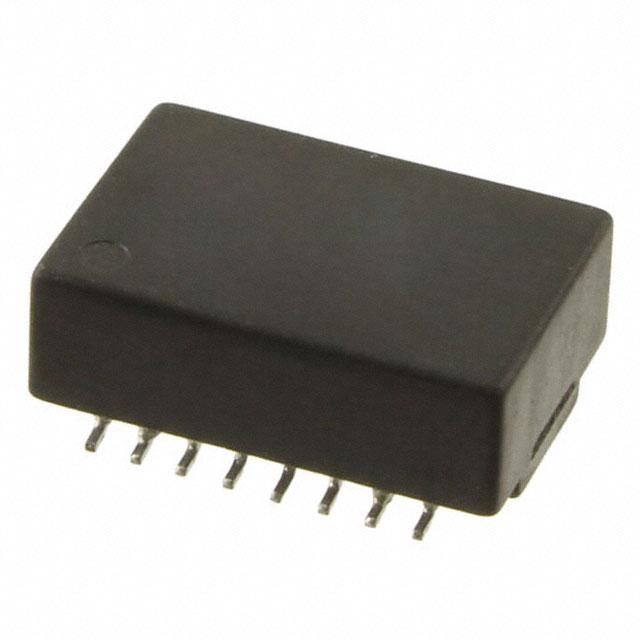

Pulse Electronics EX2024FNLT

EX2024FNLT Pulse Electronics
EX2024FNLT
Pulse Electronics

Product Information

HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Height - Seated (Max):
0.200" (5.08mm)
title:
EX2024FNLT
REACH Status:
REACH Unaffected
edacadModel:
EX2024FNLT Models
Inductance:
35µH, 200µH
edacadModelUrl:
/en/models/4291987
Manufacturer:
Pulse Electronics
ET (Volt-Time):
-
Size / Dimension:
0.498" L x 0.350" W (12.65mm x 8.89mm)
Turns Ratio - Primary:Secondary:
1CT:2.5CT Transmitter, 1CT:1CT Receiver
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Transformer Type:
LAN 10 Base-T
Mounting Type:
Surface Mount
Weight:
-
Series:
-
Packaging:
Tape & Reel (TR)
Base Product Number:
EX2024
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is EX2024FNLT. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. It has the maximum seated height of 0.200" (5.08mm). In addition, it is reach unaffected. The product has a 35µh, 200µh inductance value. The pulse electronics's product offers user-desired applications. The product's diameters include 0.498" l x 0.350" w (12.65mm x 8.89mm). The typical primary and secondary turn ratio is 1ct:2.5ct transmitter, 1ct:1ct receiver. Its typical moisture sensitivity level is 1 (unlimited). It is a lan 10 base-t transformer. The product is available in surface mount configuration. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to ex2024, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Pulse Larson REACH(Environmental Information)
pdf icon
Pulse RoHS(Environmental Information)
pdf icon
Ink to Laser Marking 03/Jul/2018(PCN Design/Specification)
pdf icon
Packages FNL vs. NL(Other Related Documents)
pdf icon
EX2024FNL Drawing(Product Drawings)
