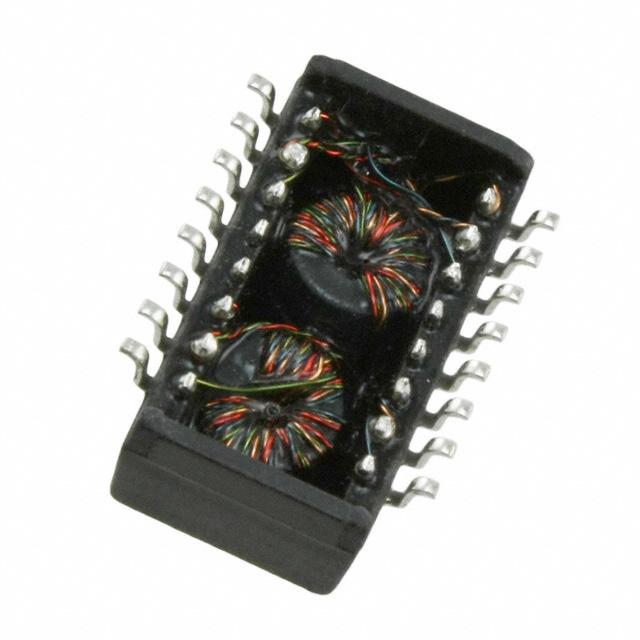

Pulse Electronics H1197NL

Enrgtech Part No: ET23565302
|
Manufacturer Part No:
H1197NL
|
Manufacturer: Pulse Electronics

Product Information

HTSUS:

8504.31.2000

RoHS Status:

ROHS3 Compliant

Operating Temperature:

0°C ~ 70°C

edacadModel:

H1197NL Models

Height - Seated (Max):

0.245" (6.22mm)

REACH Status:

REACH Unaffected

Inductance:

edacadModelUrl:

/en/models/2265887

Package:

Tube

ET (Volt-Time):

Size / Dimension:

0.500" L x 0.265" W (12.70mm x 6.73mm)

Transformer Type:

Isolation and Data Interface (Encapsulated)

Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is H1197NL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. The product has 0°c ~ 70°c operating temperature range. It has the maximum seated height of 0.245" (6.22mm). In addition, it is reach unaffected. It is shipped in tube package . The product's diameters include 0.500" l x 0.265" w (12.70mm x 6.73mm). It is a isolation and data interface (encapsulated) transformer. The typical primary and secondary turn ratio is 1ct:1ct. It has a long 12 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The typical product's weight is 0.02 oz (0.57 g). The product is designated with the ear99 code number.

Pulse RoHS(UNKNOWN TYPE)

Pulse Larson REACH(Environmental Information)

Ink to Laser Marking 03/Jul/2018(PCN Design/Specification)

Thermoplastic Header Design 28/Jun/2013(PCN Design/Specification)

Halo Injunction Res 1/Sep/2015(PCN Other)

Packages FNL vs. NL(Other Related Documents)

H1197NL Drawing Spec(Product Drawings)
