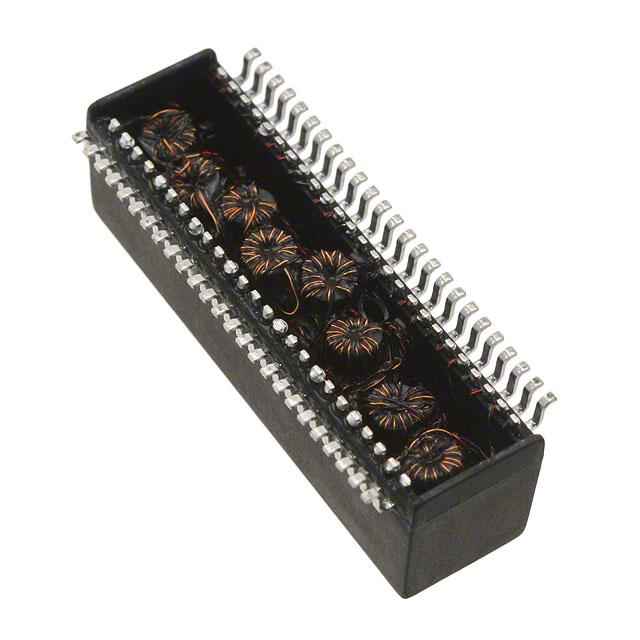

Pulse Electronics HX5020

HX5020 Pulse Electronics
Pulse Electronics

Product Information

HTSUS:
8504.31.2000
RoHS Status:
RoHS non-compliant
Operating Temperature:
-40°C ~ 85°C
Height - Seated (Max):
0.341" (8.66mm)
REACH Status:
REACH Unaffected
Inductance:
-
Package:
Bulk
ET (Volt-Time):
-
Size / Dimension:
1.100" L x 0.297" W (27.94mm x 7.54mm)
Transformer Type:
LAN 1000 Base-T
Turns Ratio - Primary:Secondary:
1CT:1CT
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Weight:
0.06 oz (1.71 g)
Series:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is HX5020. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs non-compliant. The product has -40°c ~ 85°c operating temperature range. It has the maximum seated height of 0.341" (8.66mm). In addition, it is reach unaffected. It is shipped in bulk package . The product's diameters include 1.100" l x 0.297" w (27.94mm x 7.54mm). It is a lan 1000 base-t transformer. The typical primary and secondary turn ratio is 1ct:1ct. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The typical product's weight is 0.06 oz (1.71 g). The product is designated with the ear99 code number.

pdf icon
Multiple Devices 30/Jun/2017(PCN Obsolescence/ EOL)
pdf icon
1000Base-T Magnetics Modules(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search HX5020 on website for other similar products.
We accept all major payment methods for all products including ET23565087. Please check your shopping cart at the time of order.
You can order Pulse Electronics brand products with HX5020 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Pulse Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Pulse Electronics HX5020. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics HX5020.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23565087 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23565087.
Yes. We ship HX5020 Internationally to many countries around the world.
