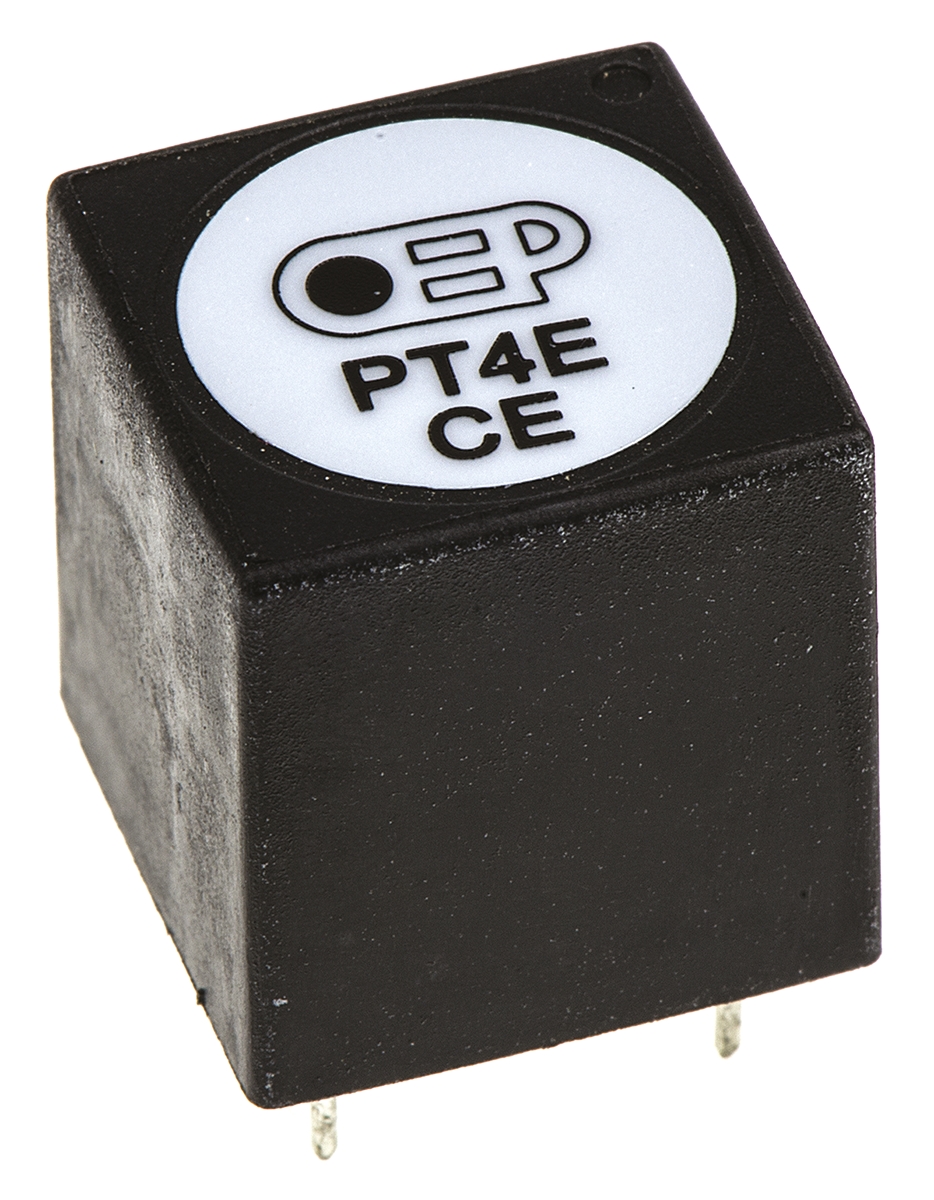

1:1 Through Hole Telecom Transformer, 3mH, 1.1Ω

  • Enrgtech Part No: ET16805521
  • |
  • Manufacturer Part No:

    PT4E

  • |
  • Manufacturer: OEP
PT4E 1:1 Through Hole Telecom Transformer, 3mH, 1.1Ω
PT4E
PT4E
OEP

Product Information

Primary DC Resistance:
1.1Ω
Dimensions:
15 x 15 x 16mm
Mounting Type:
Through Hole
Leakage Inductance:
19µH
Length:
15mm
Maximum Operating Frequency:
1MHz
Width:
15mm
Depth:
16mm
Minimum Operating Frequency:
3kHz
Turns Ratio:
1:1
Primary Inductance:
3mH
Secondary DC Resistance:
0.9Ω
RoHs Compliant
Checking for live stock

This is 1:1 Through Hole Telecom Transformer 3mH 1.1Ω manufactured by OEP. The manufacturer part number is PT4E. Additionally, it has 1.1ω primary DC resistance . The given dimensions of the product include 15 x 15 x 16mm. The product is available in through hole configuration. It has about 19µh leakage inductance . Its accurate length is 15mm. It carries 1mhz of maximum operating frequency. Furthermore, the product is 15mm wide. The product comes in 16mm depth. It has a minimum 3khz operating frequency . It has 1:1 turns ratio . Additionally, it has 3mh primary inductance . It has about 0.9ω secondary DC resistance .
