1:1:1 Through Hole Telecom Transformer, 2.5mH

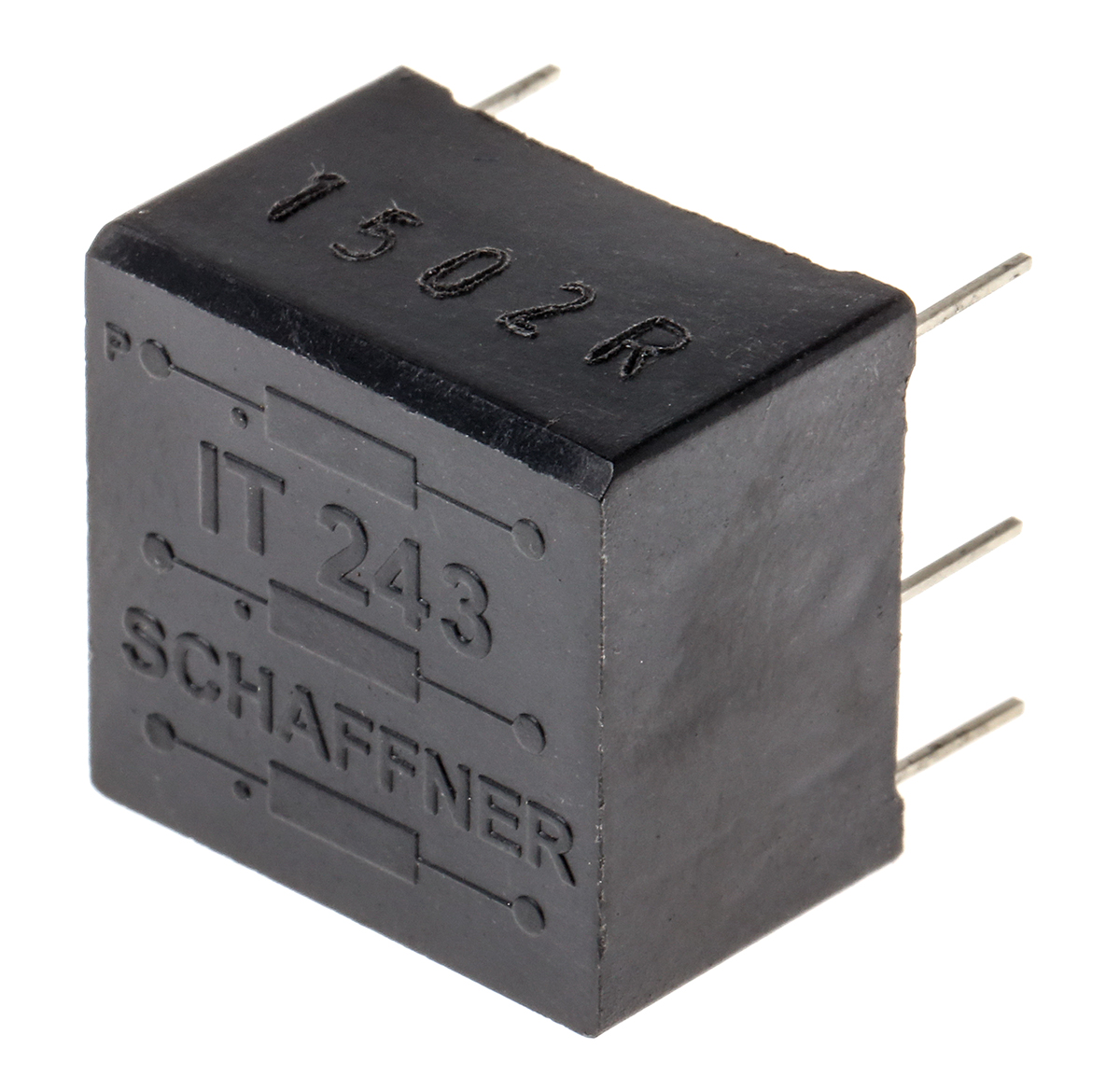

IT243 1:1:1 Through Hole Telecom Transformer, 2.5mH
IT243
IT243 1:1:1 Through Hole Telecom Transformer, 2.5mH
Schaffner

Product Information

Primary DC Resistance:
0.8Ω
Isolation Voltage:
4kV
Minimum Operating Frequency:
40kHz
Minimum Operating Temperature:
-25°C
Weight:
6g
Secondary DC Resistance:
0.8Ω
Series:
IT
Length:
16.7mm
Maximum Operating Frequency:
40kHz
Current:
1A
Width:
17.6 mm
Depth:
11.3mm
Number of Pins:
6
Turns Ratio:
1:1:1
Primary Inductance:
2.5mH
Standards/Approvals:
RoHS
Product Type:
Pulse Transformer
Maximum Operating Temperature:
70°C
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

This is 1:1:1 Through Hole Telecom Transformer 2.5mH manufactured by Schaffner. The manufacturer part number is IT243. Additionally, it has 0.8ω primary DC resistance . It has 4kv isolation voltage. It has a minimum 40khz operating frequency . Whereas, the minimum operating temperature of the product is -25°c. The typical product's weight is 6g. It has about 0.8ω secondary DC resistance . The product it, is a highly preferred choice for users. Its accurate length is 16.7mm. It carries 40khz of maximum operating frequency. Features a 1a current in A. Furthermore, the product is 17.6 mm wide. The product comes in 11.3mm depth. It is comprised of 6 pins. It has 1:1:1 turns ratio . Additionally, it has 2.5mh primary inductance . pulse transformer is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 70°c. It has a through hole type mount .

pdf icon
IT Series Pulse Transformer with Double Secondary Winding Data Sheet(Technical Reference)
pdf icon
Schaffner EMC/EMI Catalogue(Technical Reference)
