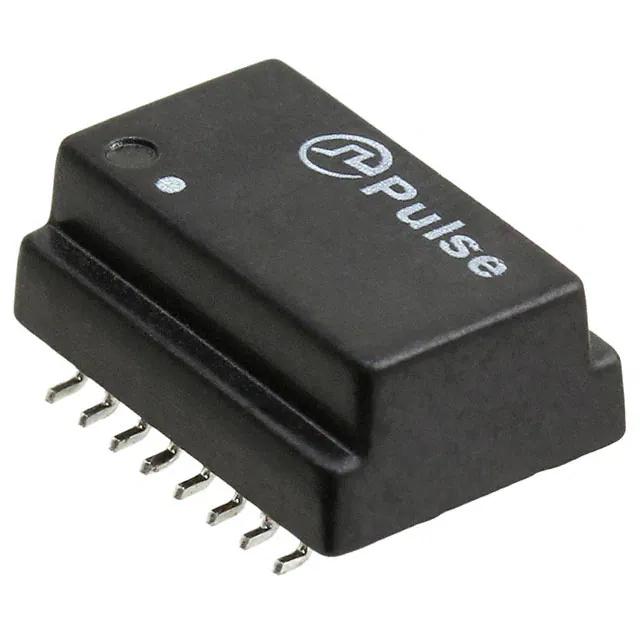

Name: H1197FNL, Pulse Electronics Network
Brand: Pulse Electronics Network
SKU: ET16697895
Price: 3.03 GBP
Availability: PreOrder

(0)

Product Information

HTSUS:

8504.31.2000

RoHS Status:

RoHS Compliant

Operating Temperature:

0°C ~ 70°C

Height - Seated (Max):

0.236" (5.99mm)

Inductance:

1.2mH

Package:

Tube

ET (Volt-Time):

Size / Dimension:

0.500" L x 0.358" W (12.70mm x 9.09mm)

Transformer Type:

LAN 10/100 Base-T

Turns Ratio - Primary:Secondary:

1CT:1CT Transmitter, 1CT:1CT Receiver

standardLeadTime:

16 Weeks

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Checking for live stock

This is manufactured by Pulse Electronics Network. The manufacturer part number is H1197FNL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. The product has 0°c ~ 70°c operating temperature range. It has the maximum seated height of 0.236" (5.99mm). The product has a 1.2mh inductance value. It is shipped in tube package . The product's diameters include 0.500" l x 0.358" w (12.70mm x 9.09mm). It is a lan 10/100 base-t transformer. The typical primary and secondary turn ratio is 1ct:1ct transmitter, 1ct:1ct receiver. It has a long 16 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product is designated with the ear99 code number.

H1197FNL Drawing(Datasheets)

Packages FNL vs. NL(Other Related Documents)

Ink to Laser Marking 03/Jul/2018(PCN Design/Specification)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search H1197FNL on website for other similar products.

We accept all major payment methods for all products including ET16697895. Please check your shopping cart at the time of order.

You can order Pulse Electronics Network brand products with H1197FNL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Pulse Transformers category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Pulse Electronics Network H1197FNL. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics Network H1197FNL.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16697895 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics Network" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16697895.

Yes. We ship H1197FNL Internationally to many countries around the world.
