1:1:1 Through Hole Telecom Transformer, 1.1mH

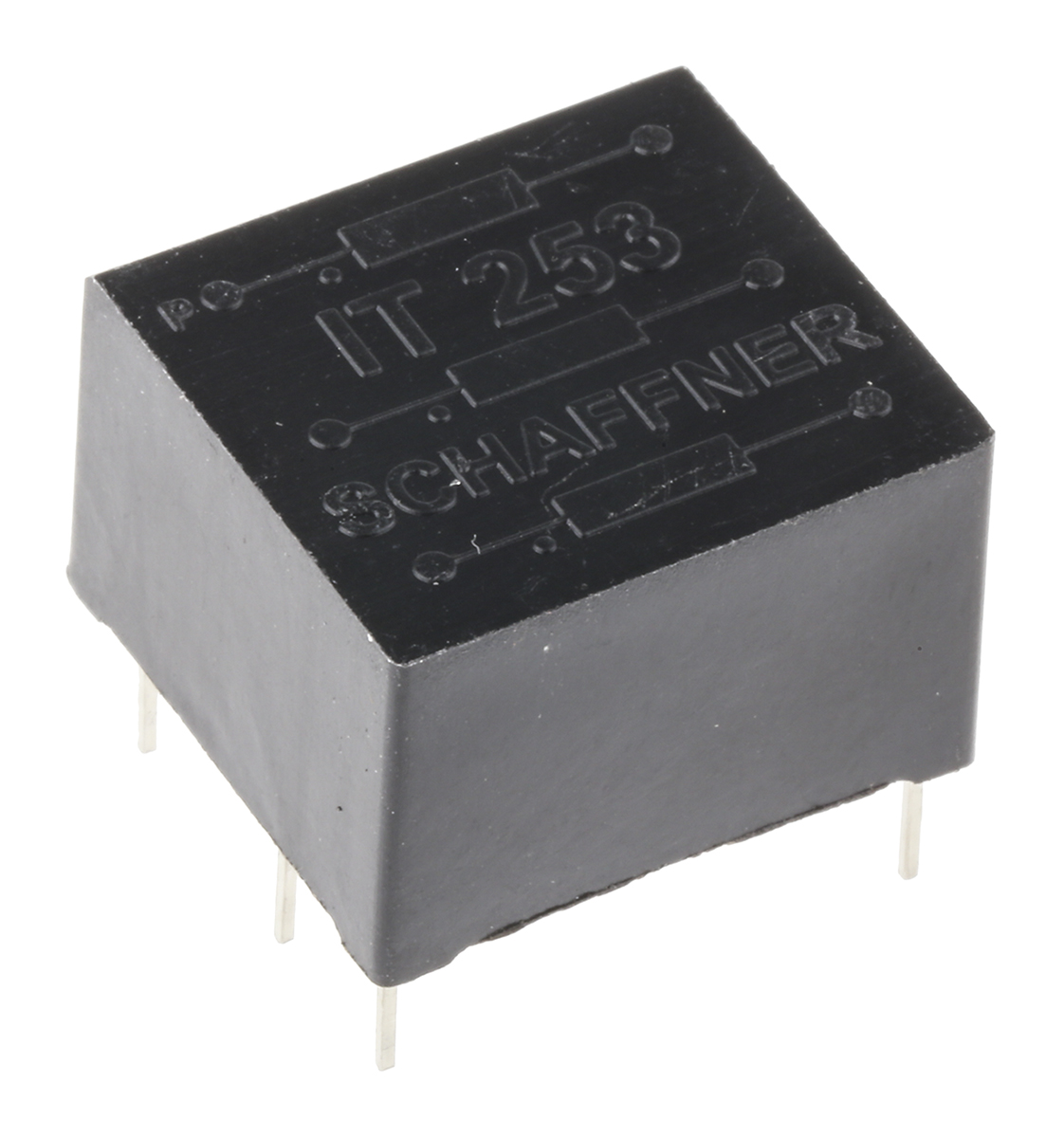

IT253 1:1:1 Through Hole Telecom Transformer, 1.1mH
IT253
IT253 1:1:1 Through Hole Telecom Transformer, 1.1mH
Schaffner

Product Information

Primary DC Resistance:
0.55?
Isolation Voltage:
4kV
Minimum Operating Frequency:
40kHz
Minimum Operating Temperature:
-25?C
Weight:
6g
Secondary DC Resistance:
0.55?
Series:
IT
Length:
16.7mm
Maximum Operating Frequency:
40kHz
Current:
1A
Width:
17.6mm
Depth:
11.3mm
Number of Pins:
6
Turns Ratio:
1:1:1
Primary Inductance:
1.1mH
Standards/Approvals:
RoHS
Product Type:
Pulse Transformer
Maximum Operating Temperature:
70?C
Mount Type:
Through Hole
RoHs Compliant
Pre-order available

Ask for lead time

Each (In a Box of 200)

Quantity
Unit Price (ex VAT)
Price
200
£ 3.30
£ 660.00
Mfr Part No:
IT253
Seller:
Schaffner
Origin:
Warranty:
Manufacturer
Data Code:
ET14010046
Order Today!
From: United Kingdom

This is 1:1:1 Through Hole Telecom Transformer 1.1mH manufactured by Schaffner. The manufacturer part number is IT253. Additionally, it has 0.55? primary DC resistance . It has 4kv isolation voltage. It has a minimum 40khz operating frequency . Whereas, the minimum operating temperature of the product is -25?c. The typical product's weight is 6g. It has about 0.55? secondary DC resistance . The product it, is a highly preferred choice for users. Its accurate length is 16.7mm. It carries 40khz of maximum operating frequency. Features a 1a current in A. Furthermore, the product is 17.6mm wide. The product comes in 11.3mm depth. It is comprised of 6 pins. It has 1:1:1 turns ratio . Additionally, it has 1.1mh primary inductance . pulse transformer is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 70?c. It has a through hole type mount .

pdf icon
IT Series Pulse Transformer with Double Secondary Winding Data Sheet(Technical Reference)
pdf icon
Schaffner EMC/EMI Catalogue(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship IT253 Internationally to many countries around the world.
Yes. You can also search IT253 on website for other similar products.
We accept all major payment methods for all products including ET14010046. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14010046 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Schaffner" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14010046.
You can order Schaffner brand products with IT253 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Pulse Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 1:1:1 Through Hole Telecom Transformer, 1.1mH. You can also check on our website or by contacting our customer support team for further order details on 1:1:1 Through Hole Telecom Transformer, 1.1mH.
