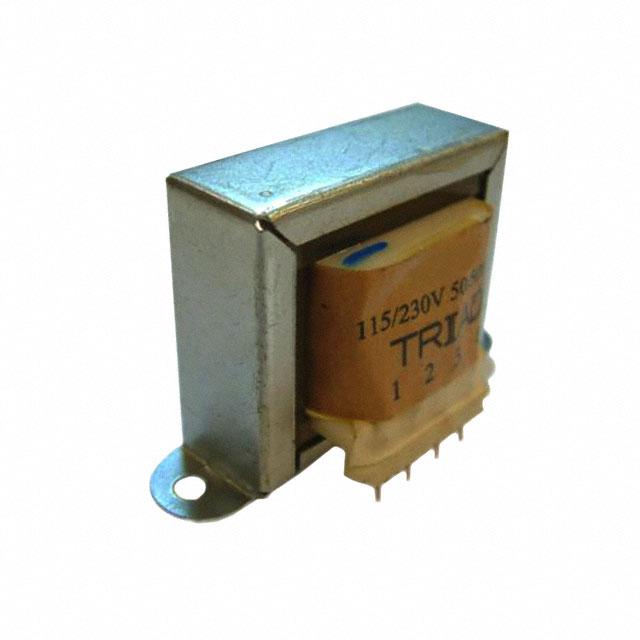

Triad Magnetics F-348XP

F-348XP Triad Magnetics
Triad Magnetics

Product Information

Secondary Winding(s):
Dual
HTSUS:
8504.31.4035
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Current - Output (Max):
Parallel 700mA, Series 350mA
Voltage - Primary:
115V, 230V
Height - Seated (Max):
34.93mm
Type:
Laminated Core
Primary Winding(s):
Dual
REACH Status:
REACH Unaffected
edacadModel:
F-348XP Models
edacadModelUrl:
/en/models/5032141
Center Tap:
No
Voltage - Secondary (Full Load):
Parallel 6.3V, Series 12.6V
Package:
Box
Size / Dimension:
60.32mm L x 31.75mm W
standardLeadTime:
23 Weeks
Voltage - Isolation:
1500Vrms
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Weight:
0.407 lb (184.62 g)
Series:
Single Primary
Power - Max:
4.5VA
ECCN:
EAR99
Checking for live stock

This is manufactured by Triad Magnetics. The manufacturer part number is F-348XP. As well as [Secondary Wing(s)]. It is assigned with possible HTSUS value of 8504.31.4035. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The maximum product's output current is parallel 700ma, series 350ma. Features primary voltage 115v, 230v. It has the maximum seated height of 34.93mm. It comes in laminated core configuration. Features dual. In addition, it is reach unaffected. Center Tap - no. Full load voltage - secondary includes parallel 6.3v, series 12.6v. It is shipped in box package . The product's diameters include 60.32mm l x 31.75mm w. It has a long 23 weeks standard lead time. 1500vrms of isolation voltage. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The typical product's weight is 0.407 lb (184.62 g). The product single primary, is a highly preferred choice for users. The maximum power of the product is 4.5va. The product is designated with the ear99 code number.
