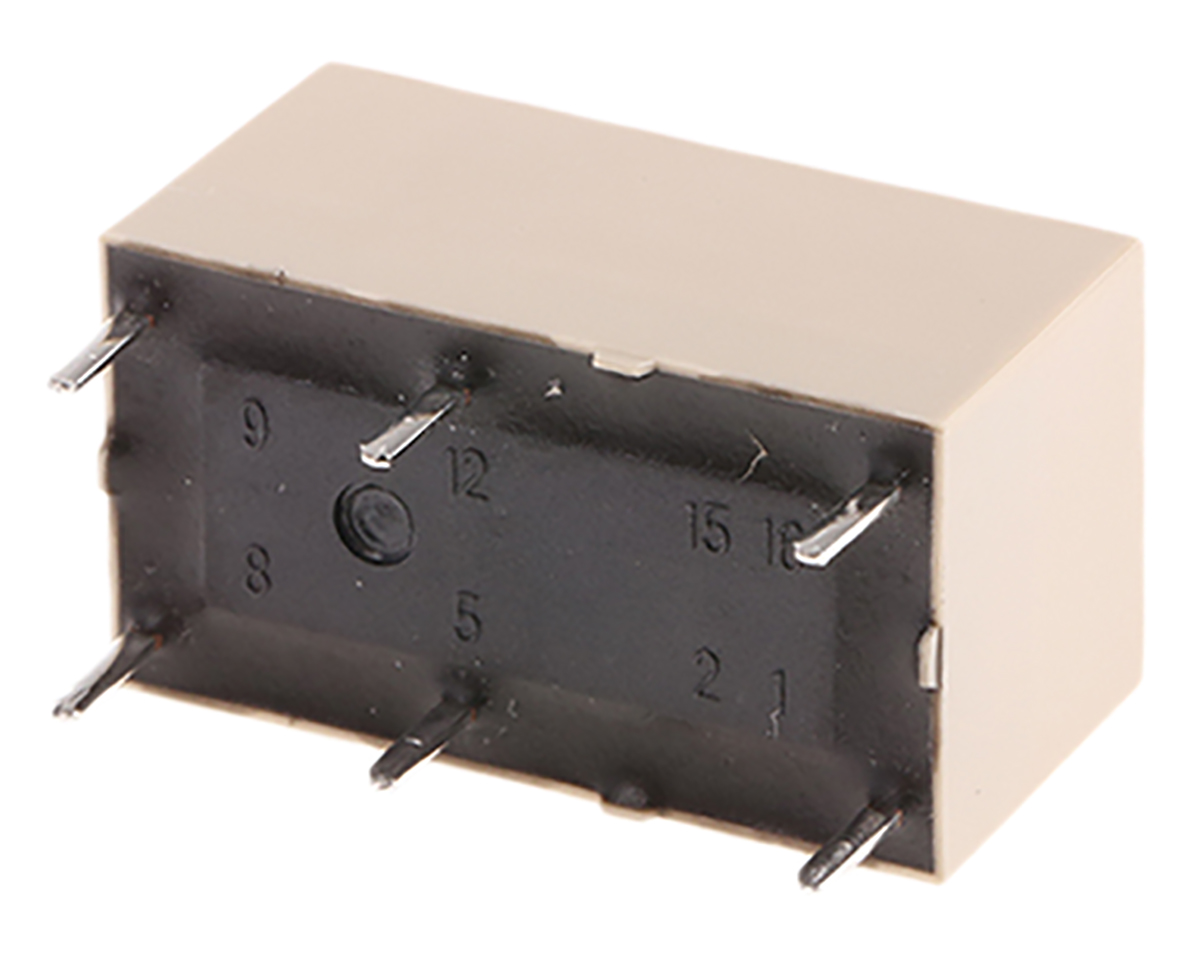

Panasonic DPST Non-Latching Relay PCB Mount, 24V dc Coil, 5 A

DSP124F Panasonic DPST Non-Latching Relay PCB Mount, 24V dc Coil, 5 A
DSP124F
Panasonic

Product Information

Life:
50000000 (Electrical) cycles
Dimensions:
20.2 x 11 x 10.5mm
Mounting Type:
PCB Mount
Operating Temperature Range:
-40 → +65°C
Coil Power:
300mW
Switching Current:
5 A
Coil Voltage:
24V dc
Minimum Operating Temperature:
-40°C
Depth:
11mm
Height:
10.5mm
Application:
Power
Length:
20.2mm
Maximum Switching Power DC:
150 W
Maximum Switching Power AC:
1.25 kVA
Contact Configuration:
DPST
Isolation Coil To Contact:
3kV rms
Contact Material:
Gold Plated
Maximum Operating Temperature:
+65°C
Terminal Type:
Through Hole
Coil Resistance:
1.92 kΩ
RoHs Compliant
Checking for live stock

This is DPST Non-Latching Relay PCB Mount 24V dc Coil 5 A manufactured by Panasonic. The manufacturer part number is DSP124F. It is capable of doing 50000000 (electrical) cycles in a lifetime . The given dimensions of the product include 20.2 x 11 x 10.5mm. The product is available in pcb mount configuration. The product has -40 → +65°c of operating temperature range. Robust coil power of 300mw. It is integrated with 5 a switching current. The coil voltage of the product is 24v dc. Whereas, the minimum operating temperature of the product is -40°c. The product comes in 11mm depth. In addition, the height is 10.5mm. Applications Information involves power. Its accurate length is 20.2mm. It bears a maximum 150 w of DC switching power. It also features an AC switching power of 1.25 kva. The contact is equipped with dpst configuration. The product has 3kv rms isolation coil to contact. The product is made from sturdy gold plated materials. It has a maximum operating temperature of +65°c. The terminal is a through hole type. It holds up to 1.92 kω coil resistance.

pdf icon
Miniature Power Relays, DS-P Series Data Sheet(Technical Reference)
