Coil Voltage:
230V ac
Application:
Interface
Terminal Type:
Plug In
Coil Resistance:
23500Ω
Life:
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
Coil Power:
820mW
Maximum Switching Voltage DC:
30V dc
Maximum Switching Power DC:
300 W
Isolation Coil To Contact:
5kV ac
Maximum Operating Temperature:
+70°C
Switching Current:
10A
Latching:
No
Contact Configuration:
SPDT
Depth:
30.6mm
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Plug In
Series:
Harmony Relay RXG
Length:
13mm
Height:
37.1mm
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
2.5 kVA
Number of Poles:
1
Contact Material:
Silver Alloy
Must Release Voltage:
69 VAC
HTSUS:
8536.49.0075
RoHS Status:
ROHS3 Compliant
Coil Voltage:
230VAC
Termination Style:
Plug In
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
CE, CSA, DNV-GL, EAC, UL
Coil Type:
Non Latching

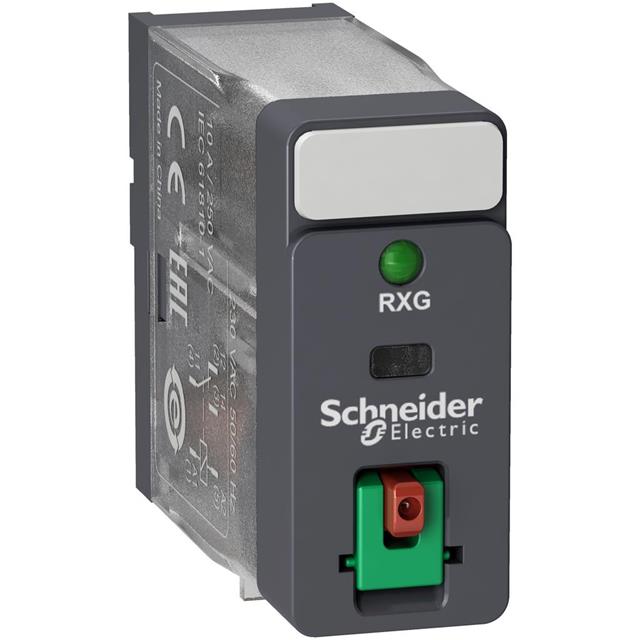

title:
RXG12P7
Seal Rating:
-
Must Operate Voltage:
184 VAC
Relay Type:
General Purpose
Load - Max Switching:
2500VA, 300W
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
10 A
Features:
Lighted Indicator, Test Button
Mounting Type:
Socketable
Grade:
-
Series:
Harmony
Switching Voltage:
250VAC, 30VDC - Max
Release Time:
20 ms
Packaging:
Box
Coil Insulation:
-
Contact Material:
Silver Tin Oxide Indium Oxide (AgSnOInO)
Base Product Number:
RXG12
ECCN:
EAR99
