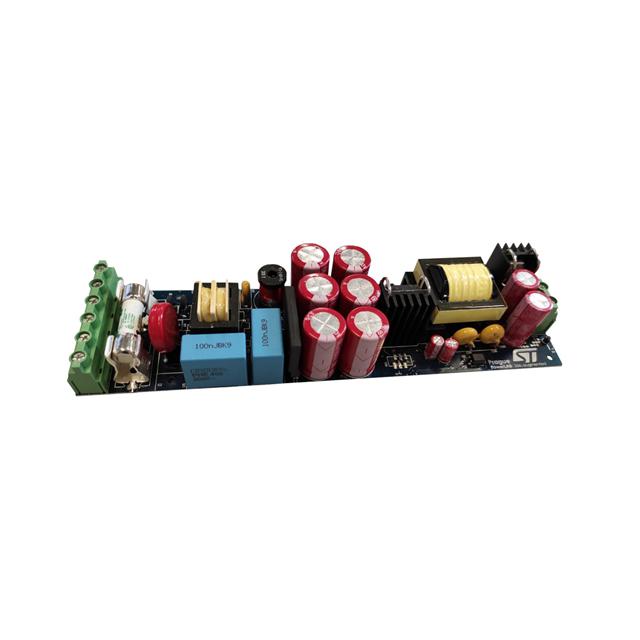

STMicroelectronics STEVAL-ISA211V1

STEVAL-ISA211V1 STMicroelectronics
STEVAL-ISA211V1
STMicroelectronics

Product Information

Power Management Function:
Flyback Converter
Kit Name:
Ultra-Wide Range Flyback Converter
Featured Device:
L6566BH
Kit Classification:
Development Kit
For Use With:
Power Supply
Main Purpose:
AC/DC, Primary Side
HTSUS:
8504.40.9520
RoHS Status:
ROHS3 Compliant
Voltage - Input:
230 ~ 690 VAC, 250V ~ 1000V
Frequency - Switching:
-
REACH Status:
REACH Unaffected
Current - Output:
-
Board Type:
Fully Populated
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
26 Weeks
Regulator Topology:
Flyback
Utilized IC / Part:
L6566BH, STW12N170K5
Series:
-
Voltage - Output:
-
ECCN:
EAR99
Supplied Contents:
Board(s)
Power - Output:
100 W
Base Product Number:
STEVAL
Outputs and Type:
1, Isolated
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STEVAL-ISA211V1. It has a/an flyback converter power management function . This kit is known as ultra-wide range flyback converter, consists of highly versatile and user-desired tools. Featured Device l6566bh. The kit is classified as development kit. The product is highly suitable for power supply. Basic Purpose: ac/dc, primary side. It is assigned with possible HTSUS value of 8504.40.9520. The product is rohs3 compliant. The possible product's input voltage is 230 ~ 690 vac, 250v ~ 1000v. In addition, it is reach unaffected. It is a fully populated type. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 26 weeks standard lead time. The product offers flyback regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. The product is designated with the ear99 code number. The product is also supplied with contents, such as board(s). The product has an output power 100 w. Moreover, it corresponds to steval, a base product number of the product. The output and type include 1, isolated.

pdf icon
Datasheet - STEVAL-ISA211V1(Technical Reference)
pdf icon
STEVAL-ISA211V1 Data Brief(Product Brief)
