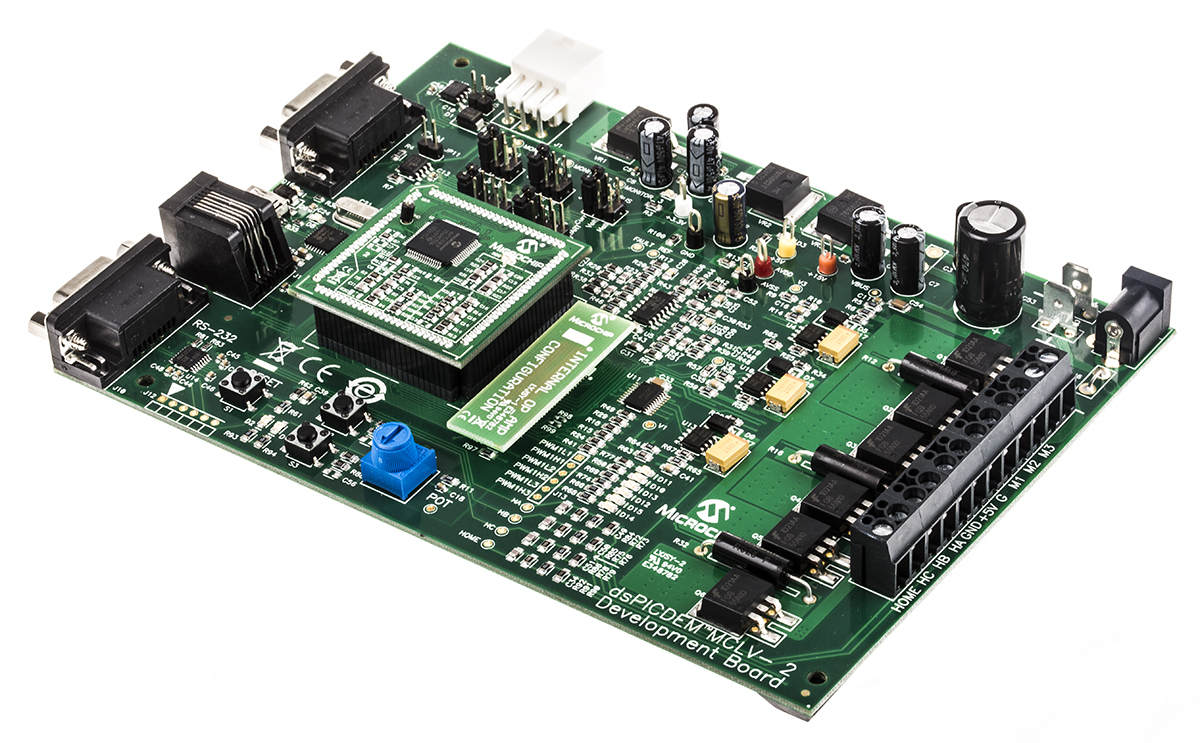

Microchip dsPICDEM MCLV-2 BLDC Motor Development Board

DM330021-2 Microchip dsPICDEM MCLV-2 BLDC Motor Development Board
DM330021-2
DM330021-2 Microchip dsPICDEM MCLV-2 BLDC Motor Development Board
Microchip

Product Information

Power Management Function:
Brushless DC Motor
Kit Name:
dsPICDEM MCLV-2
Featured Device:
PIC24F, dsPIC33E, dsPIC33F, PIC24E
Standards/Approvals:
ISO
Kit Classification:
Development Board
For Use With:
PIC24F, PIC24E, dsPIC33E, dsPIC33F
Product Type:
Evaluation Board
RoHs Compliant
Checking for live stock

The Microchip DM330021-2 is a versatile development platform for motor control. It facilitates the evaluation of 3-phase Brushless DC and Permanent Magnet Synchronous Motors. This board supports high-performance dsPIC33 digital signal controllers via Plug-In Modules. It features integrated op-amps for precise signal conditioning in complex systems. The hardware is designed to safely handle power stages up to 48V. Engineers can utilise multiple communication interfaces, including USB, CAN, and LIN. It simplifies the prototyping of sophisticated motor drive algorithms.

What Makes Our Product Stand Out?

This Microchip DM330021-2 evaluation board delivers exceptional flexibility for advanced motor control development. It integrates high-speed processing with robust safety features for industrial testing.

  • Supports both sensorized and sensorless motor control applications.
  • Compatible with a wide range of dsPIC33 Plug-In Modules.

Key Performance Features & Technical Data

  • Board Type: Motor Control Development Board (MCLV-2)
  • Compatible Motors: 3-Phase BLDC, PMSM
  • Max Voltage: 48V
  • Max Current: 10A (with modifications)
  • Communication: USB, CAN, LIN, RS-232
  • PIM Support: 100-pin Plug-In Modules
  • Feedback Support: Hall sensors, Encoder, Back EMF
  • RoHS Status: Compliant.

pdf icon
dsPICDEM MCLV-2 Development Board user guide(Technical Reference)
pdf icon
DM330021-2 - UserGuide(Technical Reference)
