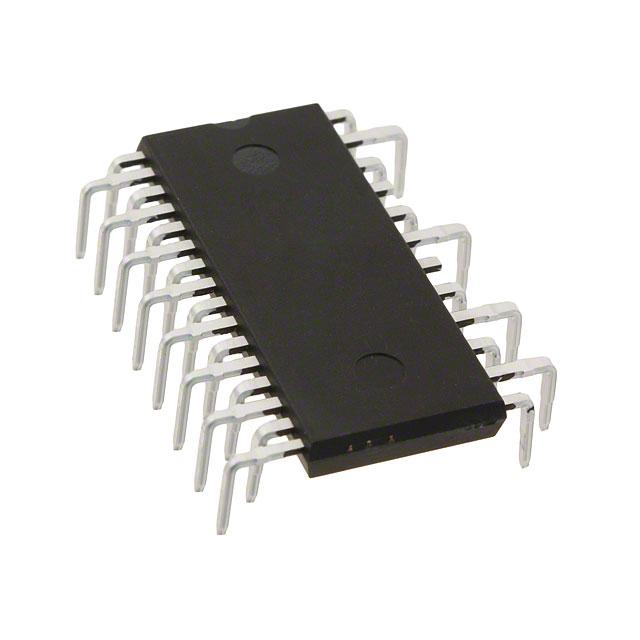

STMicroelectronics STGIPN3H60A

STGIPN3H60A STMicroelectronics
STGIPN3H60A
STGIPN3H60A
STMicroelectronics

Product Information

Configuration:
3 Phase
Dimensions:
29.25 x 12.55 x 4.4mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
8 W
Maximum Continuous Collector Current:
3 A
Maximum Collector Emitter Voltage:
600 V
Height:
4.4mm
Width:
12.55mm
Length:
29.25mm
Package Type:
NDIP
Minimum Operating Temperature:
-40 °C
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
26
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Current:
3 A
Package / Case:
26-PowerDIP Module (0.846", 21.48mm)
Type:
IGBT
REACH Status:
REACH Unaffected
edacadModel:
STGIPN3H60A Models
edacadModelUrl:
/en/models/2797513
Configuration:
3 Phase
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Isolation:
1000VDC
Mounting Type:
Through Hole
Series:
SLLIMM™
Voltage:
600 V
Base Product Number:
STGIPN3
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STGIPN3H60A. The product is available in 3 phase configuration. The given dimensions of the product include 29.25 x 12.55 x 4.4mm. The product is available in through hole configuration. Provides up to 8 w maximum power dissipation. The product has a maximum 3 a continuous collector current . Whereas features a 600 v of collector emitter voltage (max). In addition, the height is 4.4mm. Furthermore, the product is 12.55mm wide. Its accurate length is 29.25mm. The package is a sort of ndip. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 26 pins. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features a 3 a current in A. Moreover, the product comes in 26-powerdip module (0.846", 21.48mm). It comes in igbt configuration. In addition, it is reach unaffected. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). 1000vdc of isolation voltage. The product sllimm™, is a highly preferred choice for users. It carries a 600 v of voltage. Moreover, it corresponds to stgipn3, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
STGIPN3H60A, SLLIMM-nano (Small Low-Loss Intelligent Molded Module) IPM, 3A - 600V 3-Phase IGBT Inverter Bridge(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
Mult Dev Assembly Chg 18/Oct/2019(PCN Assembly/Origin)
pdf icon
STGIPN3H60A(Datasheets)
