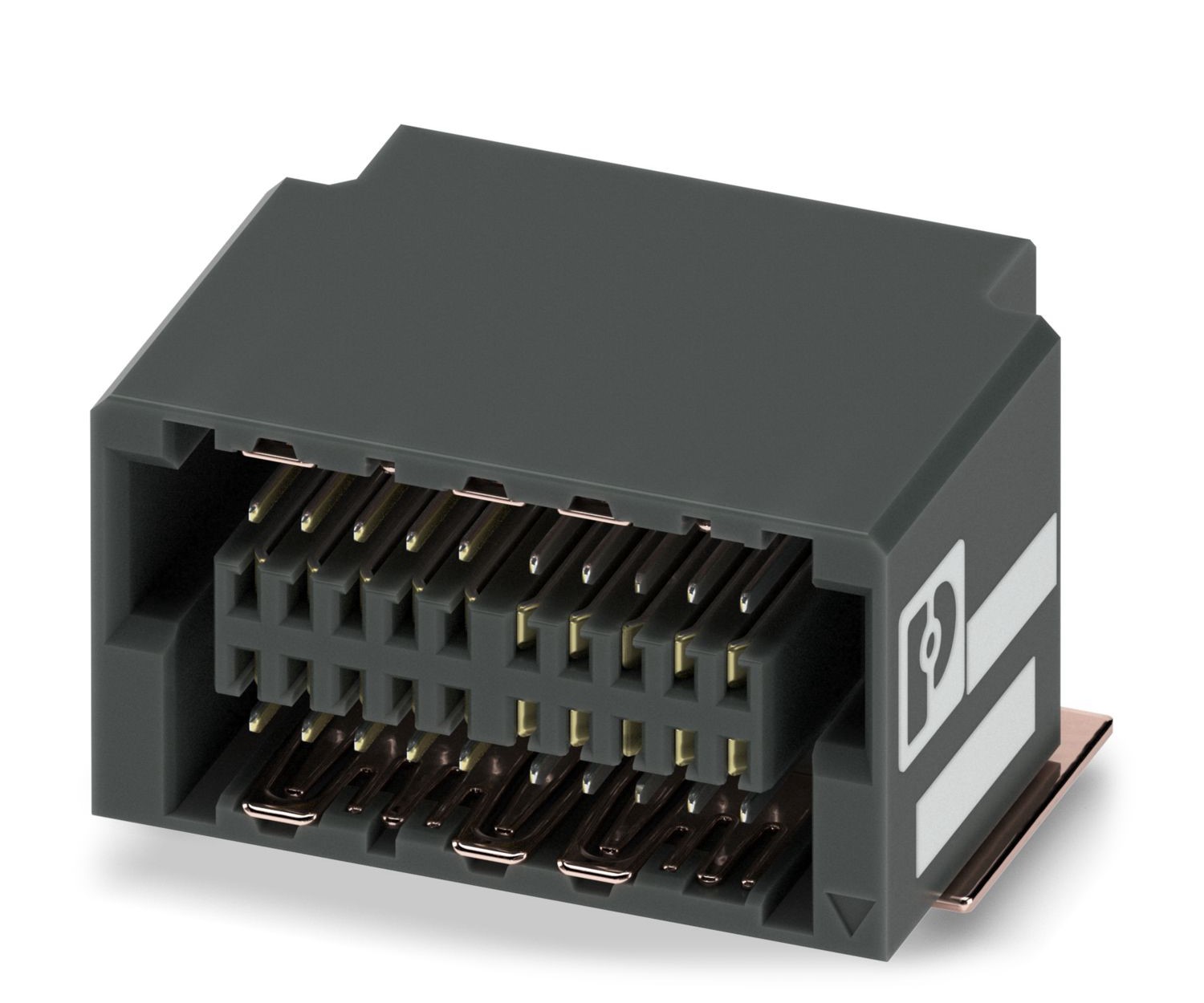

Phoenix Contact 0.8mm Pitch 20 Way 2 Row PCB Socket, Surface Mount

1053616 Phoenix Contact 0.8mm Pitch 20 Way 2 Row PCB Socket, Surface Mount
Phoenix Contact

Product Information

Number of Contacts:
20
Number of Rows:
2
Type:
SMD Female Connector
Mounting Type:
Surface Mount
Pitch:
0.8mm
Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
20
Contact Length - Post:
-
Insulation Height:
0.311" (7.90mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
1.7A
Pitch - Mating:
0.031" (0.80mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
COMBICON FP
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
Checking for live stock

This is 0.8mm Pitch 20 Way 2 Row PCB Socket Surface Mount manufactured by Phoenix Contact. The manufacturer part number is 1053616. The product contains 20 contacts. It comes in 2 of rows. It comes in smd female connector configuration. The product is available in surface mount configuration. Moreover, the product is 0.8mm. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 20. 0.311" (7.90mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical rectangular shape. It is shipped in bulk package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 1.7a. It has 0.031" (0.80mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product combicon fp, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number.
