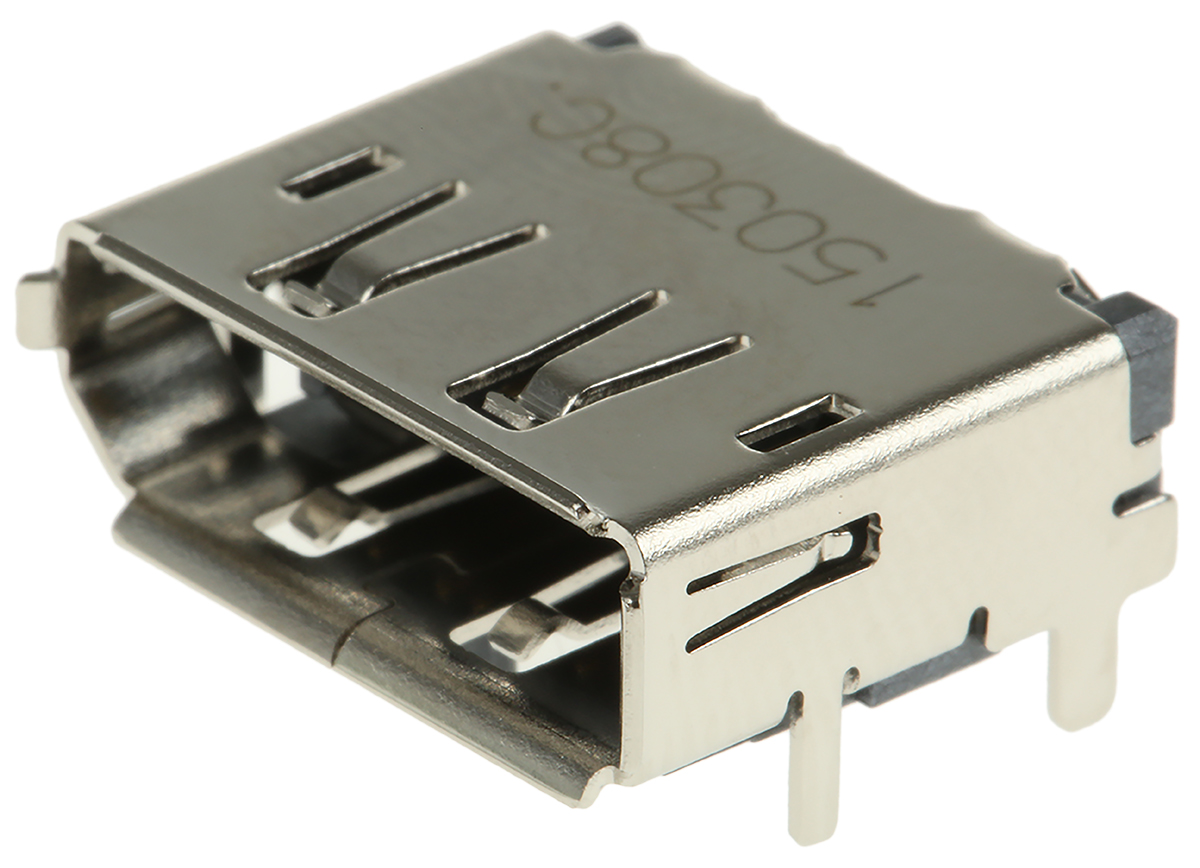

Molex DisplayPort 47272, 0.5mm Pitch, 20 Way, 2 Row, Right Angle PCB Socket, Surface Mount

47272-0001 Molex DisplayPort 47272, 0.5mm Pitch, 20 Way, 2 Row, Right Angle PCB Socket, Surface Mount
47272-0001
Molex

Product Information

Number of Contacts:
20
Current Rating:
500mA
Contact Plating:
Gold
Mounting Type:
Surface Mount
Voltage Rating:
40.0 V
Series:
DisplayPort
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Pitch:
0.5mm
Contact Material:
Copper Alloy
Type:
Wire to Board
Series Number:
47272
RoHs Compliant
Checking for live stock

This is DisplayPort 47272 0.5mm Pitch 20 Way 2 Row Right Angle PCB Socket Surface Mount manufactured by Molex. The manufacturer part number is 47272-0001. The product contains 20 contacts. The product has a current rating of 500ma. The high-quality gold is used as contact plating material. The product is available in surface mount configuration. Moreover, the product has a nominal 40.0 v voltage rating. The product displayport, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. Moreover, the product is 0.5mm. The product is made from sturdy copper alloy materials. It comes in wire to board configuration. It carries [Serial Number] serial number.

pdf icon
Datasheet(Technical Reference)
pdf icon
0.5mm Pitch DisplyPort Receptacle - Drawing(Technical Reference)
pdf icon
0.5mm Pitch DisplyPort Interconnect Solutions - Brochure(Technical Reference)
pdf icon
Product Specification Sheet - 47272-0001(Technical Reference)
