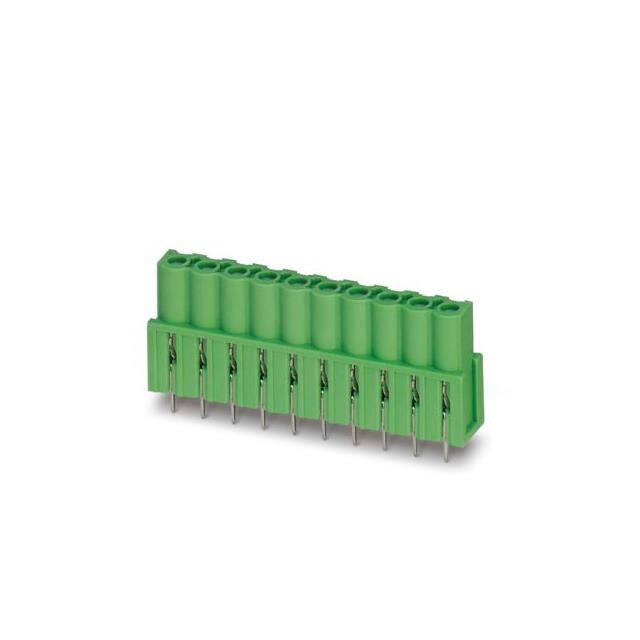

Phoenix Contact COMBICON ICV, 5.08mm Pitch, 10 Way PCB Terminal Block Header

1943616 Phoenix Contact COMBICON ICV, 5.08mm Pitch, 10 Way PCB Terminal Block Header
1943616
Phoenix Contact

Product Information

Current Rating:
16.0A
Mounting Type:
Through Hole
Voltage Rating:
630.0 V
Series:
ICV 2.5 HC/10-G-5.08
Body Orientation:
Straight
Termination Method:
Solder
Pluggable Terminal Block Type:
Inverted Header
Number of Rows:
1
Pitch:
5.08mm
Number of Contacts:
10
Contact Material:
Tin
HTSUS:
8536.69.4040
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-40°C ~ 100°C
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Female Sockets
Number of Positions:
10
Wire Gauge or Range - mm²:
-
title:
1943616
Plug Wire Entry:
-
Insulation Height:
0.748" (19.00mm)
edacadModel:
1943616 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/17940812
Manufacturer:
Phoenix Contact
Contact Tail Length:
0.142" (3.60mm)
Current - IEC:
16A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON ICV
Positions Per Level:
10
Packaging:
Bulk
Header Orientation:
Vertical
Current - UL:
10 A
Pitch:
0.200" (5.08mm)
Contact Material:
Copper Alloy
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is COMBICON ICV 5.08mm Pitch 10 Way PCB Terminal Block Header manufactured by Phoenix Contact. The manufacturer part number is 1943616. The product has a current rating of 16.0a. The product is available in through hole configuration. Moreover, the product has a nominal 630.0 v voltage rating. The product icv 2.5 hc/10-g-5.08, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It comes in 1 of rows. Moreover, the product is 5.08mm. The product contains 10 contacts. The product is made from sturdy tin materials. It is assigned with possible HTSUS value of 8536.69.4040. Moreover, it has solder terminal style. The product also features robust polyamide (pa), nylon housing material. The product has -40°c ~ 100°c operating temperature range. It comes in header, female sockets configuration. The product carries possible position value of 10. 0.748" (19.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. The typical tail length of the product is [Contact Tail Lenght]. An IEC current of 16a. The product carries 1 levels. While 300 v is the typical voltage of the product. It has a long 6 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. It has a classic green colour. The product combicon icv, is a highly preferred choice for users. It has 10 positions each level. In addition, bulk is the available packaging type of the product. The product has a vertical of a header orientation. The typical current includes 10 a. Moreover, the product is 0.200" (5.08mm). The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
