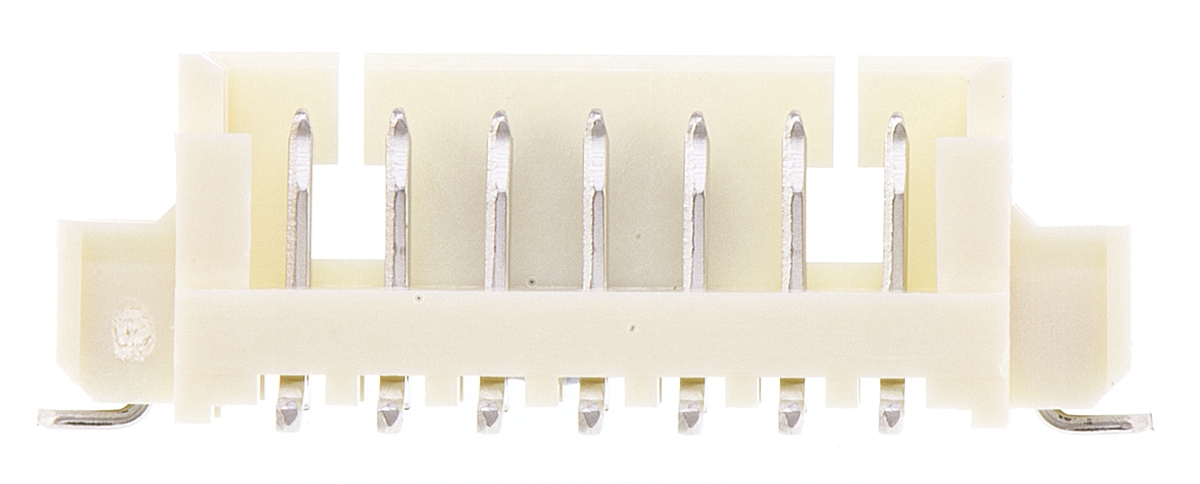

Molex 53398-0771, 1.25mm Pitch 7 Way 1 Row Shrouded Straight PCB Header, Surface Mount

53398-0771 Molex , 1.25mm Pitch 7 Way 1 Row Shrouded Straight PCB Header, Surface Mount
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Number of Contacts:
7
Current Rating:
1.0A
Contact Plating:
Tin
Mounting Type:
Surface Mount
Voltage Rating:
125.0 V
Series:
PicoBlade
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
1
Pitch:
1.25mm
Contact Material:
Phosphor Bronze
Series Number:
53398
HTSUS:
8536.69.4040

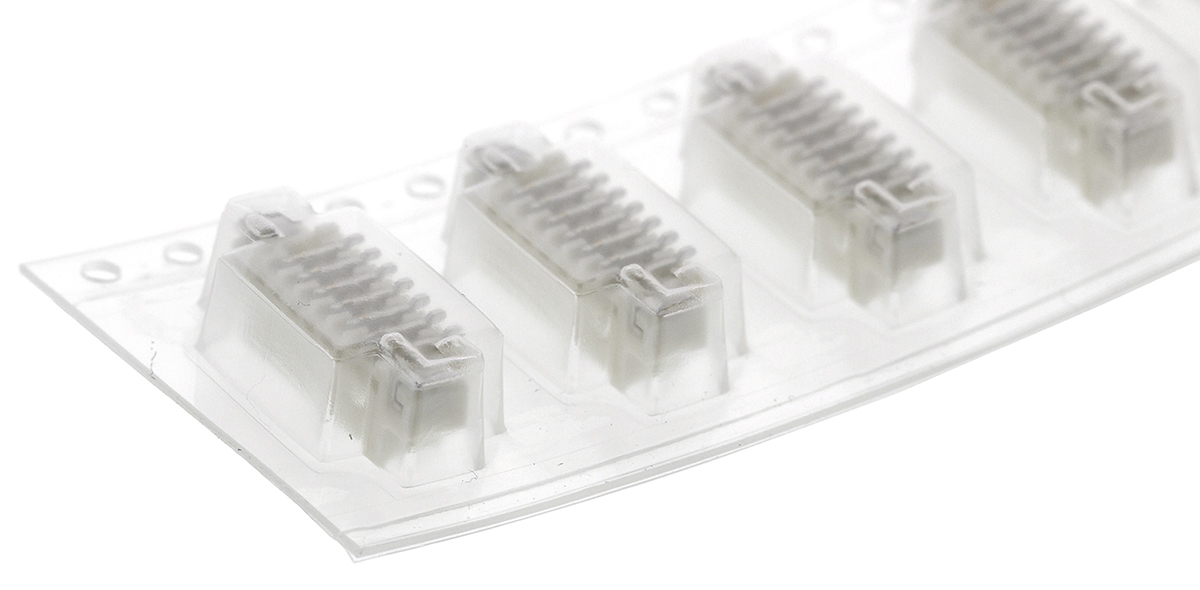

Package:
Bulk
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The Molex 53398-0771 is a high-quality 1.25mm pitch, 7-way, single-row surface mount PCB header designed for compact and high-density electronic assemblies. Engineered for reliability and precision, this shrouded straight header is ideal for UK electronics manufacturers seeking efficient board-to-board or cable-to-board interconnections in space-constrained designs. Additionally, this robust header from Molex ensures a secure electrical connection in tight spaces. It is especially beneficial where miniature components are required without compromising on performance, helping you achieve reliable signal transmission and streamlined board layouts.

Primary Functions of the Molex 53398-0771, Shrouded Straight PCB Header

The 53398-0771 header operates by establishing a firm electrical pathway between a compatible connector and the PCB. The surface mount design allows direct soldering onto the board, minimising insertion loss and enhancing signal fidelity.

Salient Features of the Product

  • Shrouded header prevents mismating.
  • Surface mount termination.
  • Straight mounting orientation.
  • Reliable Molex engineering.

Unmatched Advantages of Choosing this PCB Header from Molex

  • Space-saving footprint for dense PCBs.
  • Ensures proper alignment and secure mating.
  • Simplifies automated assembly processes.
  • Enhances connection stability and performance.

Versatility in Applications

  • Consumer electronics
  • Networking and telecommunications
  • Industrial control systems
  • Office automation equipment
  • Medical instrumentation
  • Automotive electronics

pdf icon
Datasheet(Technical Reference)
pdf icon
Current Derating Information(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
Datasheet(Datasheets)

Reviews

  • Be the first to review.

Enrgtech is a leading UK company operating globally, combining delivery, logistics, and fulfillment of electronic and electrical products worldwide, including Molex 53398-0771, 1.25mm Pitch 7 Way 1 Row Shrouded Straight PCB Header, Surface Mount. With a range of products, including Molex 53398-0771, 1.25mm Pitch 7 Way 1 Row Shrouded Straight PCB Header, Surface Mount suitable for various applications, the PCB Headers-Printed Circuit Board headers are an electrical connector that allows making connections to a single-block printed circuit board. These PCB headers like Molex 53398-0771, 1.25mm Pitch 7 Way 1 Row Shrouded Straight PCB Header, Surface Mount with ET14022857, also known as PCB pins, are commonly used to transmit signals or power from one PCB to another through a connection cable or block.



As part of the principles of responsible marketing, when communicating our products Molex 53398-0771, 1.25mm Pitch 7 Way 1 Row Shrouded Straight PCB Header, Surface Mount and services, we follow an approach that considers social differences, respects human rights, is fair, transparent, open, and shares correct information about PCB Headers. We prioritize bringing you the latest and genuine PCB Headers with unique 53398-0771 from leading brands like Molex. In addition to international exports, our customer service team will help you get your PCB Headers in the exact condition by emailing sales@enrgtech.co.uk or contacting us at +44 (0) 3303 800 157 and even track your order(s) using the product number ET14022857 provided.


FAQs

Yes. We ship 53398-0771 Internationally to many countries around the world.
Yes. You can also search 53398-0771 on website for other similar products.
We accept all major payment methods for all products including ET14022857. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14022857 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14022857.
You can order Molex brand products with 53398-0771 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Headers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 53398-0771, 1.25mm Pitch 7 Way 1 Row Shrouded Straight PCB Header, Surface Mount. You can also check on our website or by contacting our customer support team for further order details on Molex 53398-0771, 1.25mm Pitch 7 Way 1 Row Shrouded Straight PCB Header, Surface Mount.
