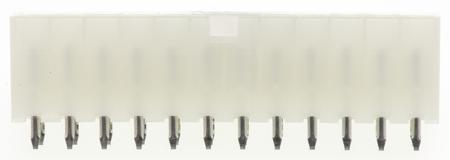

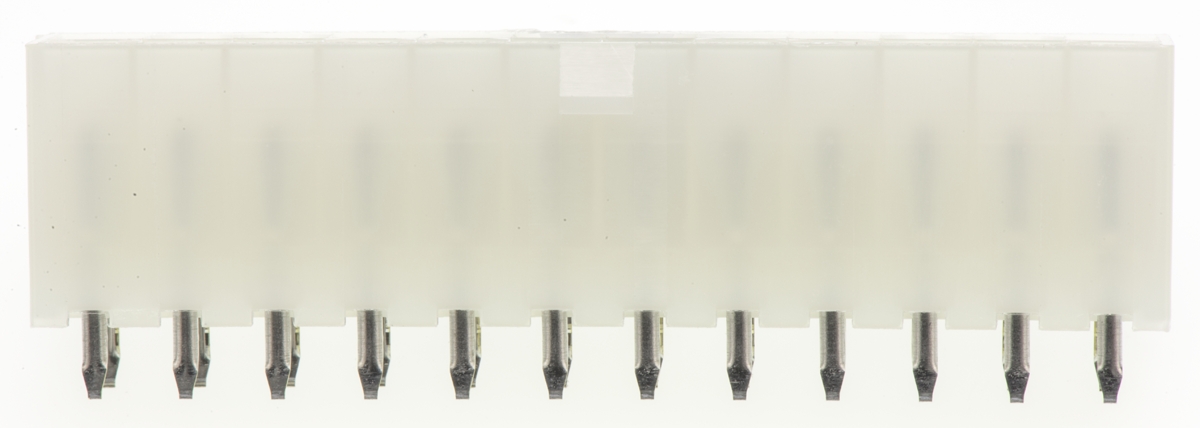

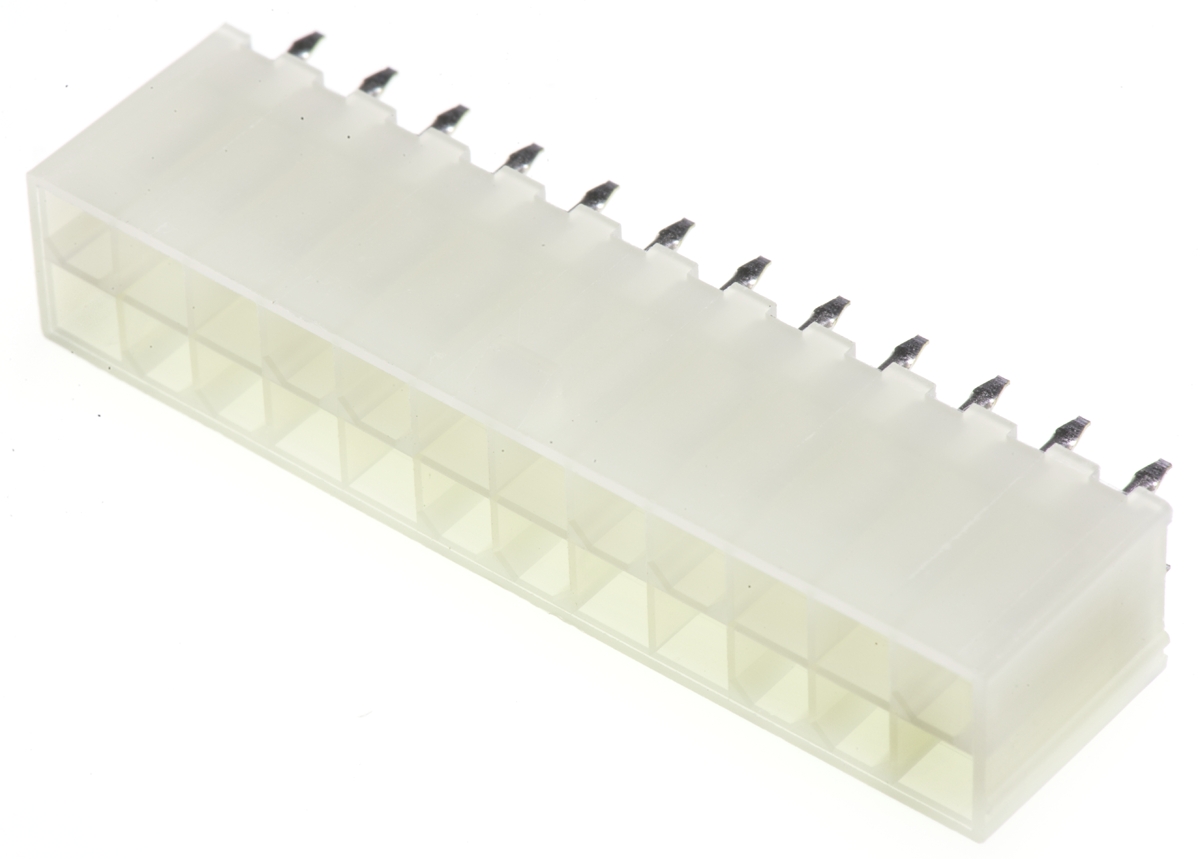

Molex Mini-Fit Jr 5566, 4.2mm Pitch, 24 Way, 2 Row, Straight PCB Header, Through Hole

39-28-1243 Molex Mini-Fit Jr 5566, 4.2mm Pitch, 24 Way, 2 Row, Straight PCB Header, Through Hole
39-28-1243
39-28-1243
ET14022661
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Number of Contacts:
24
Current Rating:
6.0A
Mounting Type:
Through Hole
Voltage Rating:
600.0 V
Series:
Mini-Fit Jr.
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Tin
Pitch:
4.2mm
Contact Material:
Brass
Series Number:
5566
RoHs Compliant
Checking for live stock

This is Mini-Fit Jr 5566 4.2mm Pitch 24 Way 2 Row Straight PCB Header Through Hole manufactured by Molex. The manufacturer part number is 39-28-1243. It is supplied as shrouded. The product contains 24 contacts. The product has a current rating of 6.0a. The product is available in through hole configuration. Moreover, the product has a nominal 600.0 v voltage rating. The product mini-fit jr., is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality tin is used as contact plating material. Moreover, the product is 4.2mm. The product is made from sturdy brass materials. It carries [Serial Number] serial number.

pdf icon
Molex Mini-Fit Connector Datasheet(Technical Reference)
pdf icon
FiT Families(Technical Reference)
pdf icon
Application Specification(Technical Reference)
pdf icon
Product Specification(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
Datasheet(Technical Reference)
pdf icon
Product Reference Guide(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

Enrgtech is a leading UK company operating globally, combining delivery, logistics, and fulfillment of electronic and electrical products worldwide, including Molex Mini-Fit Jr 5566, 4.2mm Pitch, 24 Way, 2 Row, Straight PCB Header, Through Hole. With a range of products, including Molex Mini-Fit Jr 5566, 4.2mm Pitch, 24 Way, 2 Row, Straight PCB Header, Through Hole suitable for various applications, the PCB Headers-Printed Circuit Board headers are an electrical connector that allows making connections to a single-block printed circuit board. These PCB headers like Molex Mini-Fit Jr 5566, 4.2mm Pitch, 24 Way, 2 Row, Straight PCB Header, Through Hole with ET14022661, also known as PCB pins, are commonly used to transmit signals or power from one PCB to another through a connection cable or block.



As part of the principles of responsible marketing, when communicating our products Molex Mini-Fit Jr 5566, 4.2mm Pitch, 24 Way, 2 Row, Straight PCB Header, Through Hole and services, we follow an approach that considers social differences, respects human rights, is fair, transparent, open, and shares correct information about PCB Headers. We prioritize bringing you the latest and genuine PCB Headers with unique 39-28-1243 from leading brands like Molex. In addition to international exports, our customer service team will help you get your PCB Headers in the exact condition by emailing sales@enrgtech.co.uk or contacting us at +44 (0) 3303 800 157 and even track your order(s) using the product number ET14022661 provided.
