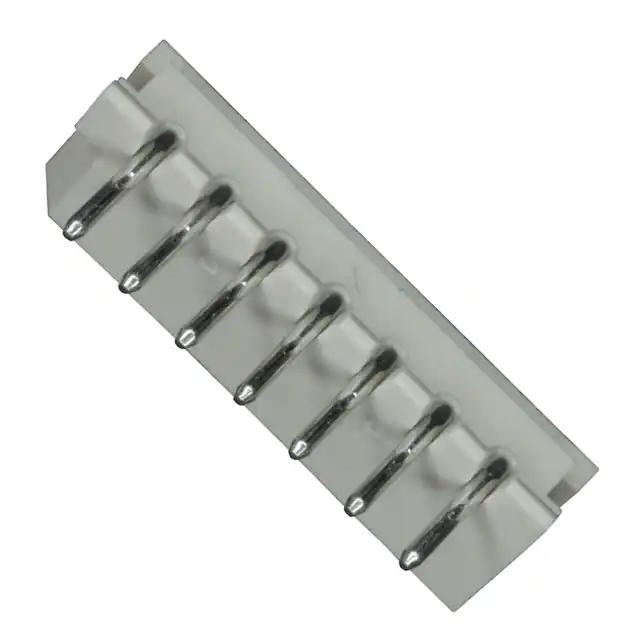

Molex SPOX Series, Series Number 5268, 2.5mm Pitch 7 Way 1 Row Shrouded Right Angle PCB Header, Through Hole

Enrgtech Part No: ET13893572
|
Manufacturer Part No:
22-05-7075
|
Manufacturer: Molex

22-05-7075 Molex SPOX Series, Series Number 5268, 2.5mm Pitch 7 Way 1 Row Shrouded Right Angle PCB Header, Through Hole

Product Information

Shrouded/Unshrouded:

Shrouded

Number of Contacts:

Current Rating:

3.0A

Mounting Type:

Through Hole

Voltage Rating:

250.0 V

Series:

SPOX

Body Orientation:

Right Angle

Termination Method:

Solder

Connector System:

Wire to Board

Number of Rows:

Contact Plating:

Tin

Pitch:

2.5mm

Checking for live stock

This is SPOX Series Series Number 5268 2.5mm Pitch 7 Way 1 Row Shrouded Right Angle PCB Header Through Hole manufactured by Molex. The manufacturer part number is 22-05-7075. It is supplied as shrouded. The product contains 7 contacts. The product has a current rating of 3.0a. The product is available in through hole configuration. Moreover, the product has a nominal 250.0 v voltage rating. The product spox, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 1 of rows. The high-quality tin is used as contact plating material. Moreover, the product is 2.5mm. The product is made from sturdy brass materials. It carries [Serial Number] serial number. It has typical 13 weeks of manufacturer standard lead time. Additionally, the product is designed with board to cable/wire Style. It features connector header through hole, right angle 7 position 0.098" (2.50mm). Additionally, it features 160.0µin (4.06µm) of post thickness. The product carries possible position value of 7. 0.138" (3.50mm) is the given possible contact length (post) values. 0.193" (4.90mm) of insulation height. However, 160.0µin (4.06µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial, medical, telecommunications. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. The molex's product offers user-desired applications. In addition, natural is the insulation color of the product. header Connector type offer robust functionality. It is 0.138" (3.50mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product mini-spox 5268, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has nice contact finishing of tin. It has typical contact type of male pin. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. It has possible tin contact post finishing.

Datasheet(Technical Reference)

Header 2.5mm SPOX, WTB, RA, F/lock, 7w Drawing(Technical Reference)

Line Drawing(Technical Reference)

22-05-7075 RoHS Cert of Compliance(Environmental Information)

New Housing Tooling 10/Feb/2015(PCN Assembly/Origin)

22-05-7075(Datasheets)

149 (UK2011-EN PDF)(Catalog Page)

Multiple Devices Packaging Changes 30/Apr/2016(PCN Packaging)

22-05-7075.pdf(3D Drawings)
