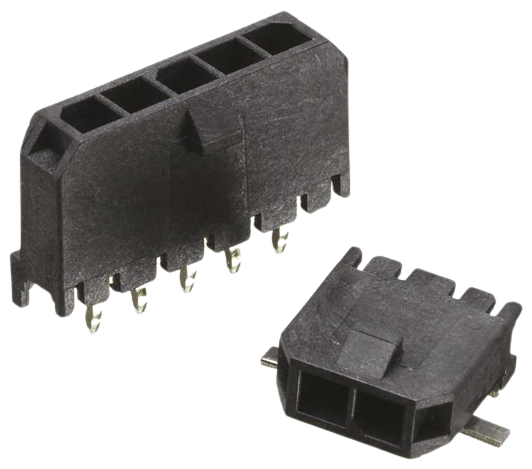

Molex MICRO-FIT 3.0 43650, 3mm Pitch, 5 Way, 1 Row, Right Angle PCB Header, Through Hole

43650-0500 Molex MICRO-FIT 3.0 43650, 3mm Pitch, 5 Way, 1 Row, Right Angle PCB Header, Through Hole
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Number of Contacts:
5
Current Rating:
5.0A
Mounting Type:
Through Hole
Voltage Rating:
250.0 V
Series:
Micro-Fit 3.0
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
1
Contact Plating:
Tin
Pitch:
3.0mm
Contact Material:
Brass
Series Number:
43650
HTSUS:
8536.69.4040
Package:
Box
Series:
*
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

Molex Micro-Fit 3.0 3.0mm Single Row PCB Headers with Snap in Plastic Peg PCB Lock, 43650 Series Micro-Fit 3.0 3mm pitch wire to board single row PCB headers which form part of a compact power connector system providing a low to mid-range power distribution solution. With the ability to carry up to 5A of current, Micro-Fit 3.0 connectors have one of the highest current carrying abilities in the smallest footprints available. These Micro-Fit 3.0 PCB headers incorporate positive latching in the form of a locking ramp on the housing for secure mating and to prevent accidental disconnection. The housings are made of high-temperature UL 94V-0 Liquid Crystal Polymer that can withstand temperatures of up to 265°C during the IR reflow soldering process. The through hole mounting versions of these Micro-Fit 3.0 headers are also SMT compatible which means a reduction in process requirements and costs. To secure these Micro-Fit 3.0 headers to the PCB board, snap-in plastic peg PCB locks are incorporated into the connector design. The contacts of these Micro-Fit 3.0 headers are fully isolated within the housings to reduce arcing. Tin or a choice of two thicknesses of gold contact platings are available to keep down costs Features and Benefits • High current carrying capacity in a small footprint • High temperature housings for IR reflow soldering • Through hole versions SMT compatible • Positive latching for secure mating connection • Fully isolated dual beam terminals for reliable electrical performance and contact • Plastic peg PCB locks for secure connection to PCB • Glow Wire Compliant Product Application Information These Micro-Fit 3.0 header connectors are suitable for use in a wide range of low to mid power applications including the following: Military COTS (Commercial Off The Shelf) Solar power Consumer products (dryers, freezers, fridges, washing ma...

pdf icon
Datasheet(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
Micro Fit (3.0) Single Row Right Angle Through Hole Pegs Drawing(Technical Reference)
pdf icon
Datasheet(Datasheets)
