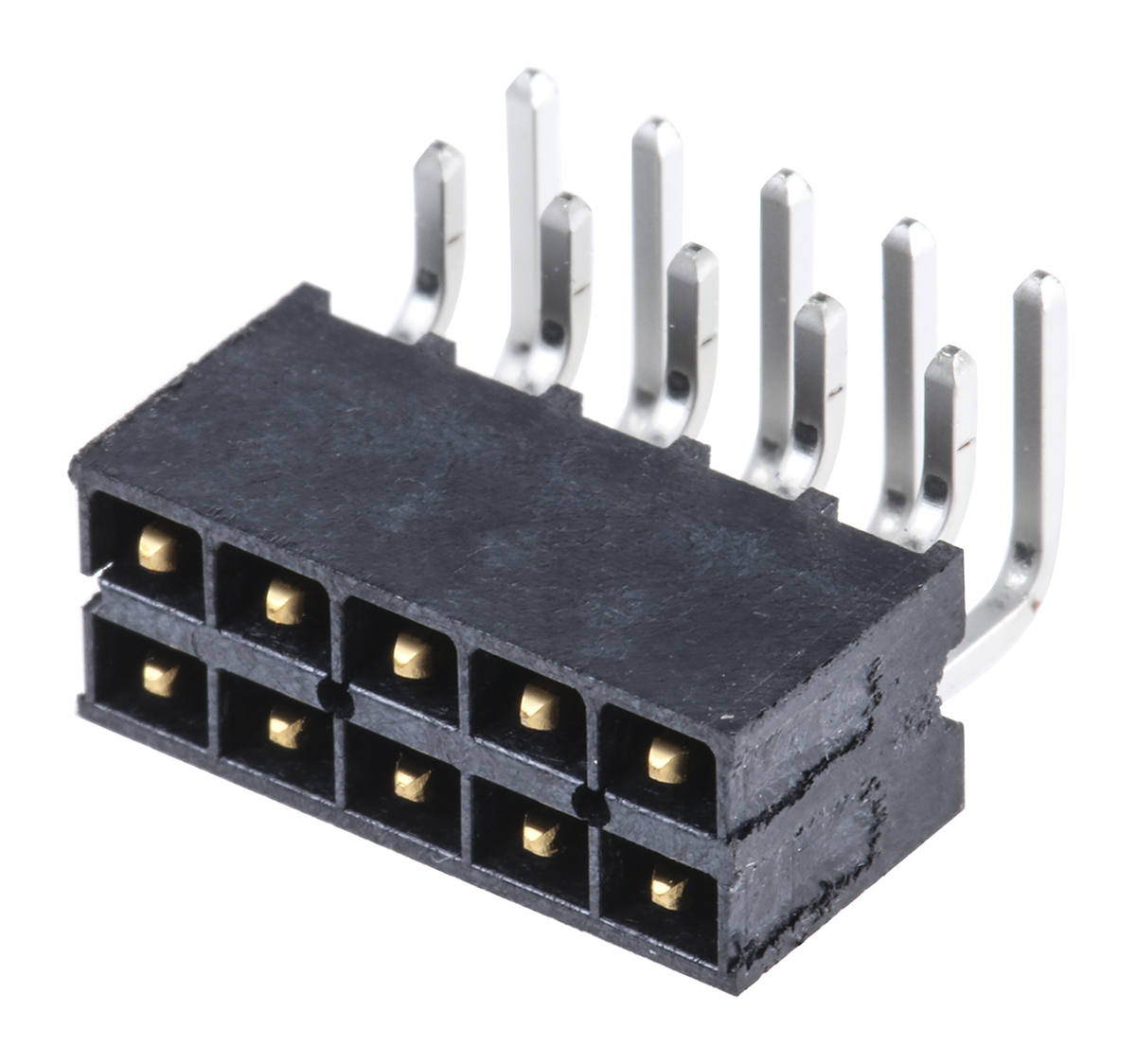

Samtec IPT1 Mini Mate Series, 2.54mm Pitch 10 Way 2 Row Shrouded Right Angle PCB Header, Through Hole

IPT1-105-01-L-D-RA Samtec IPT1 Mini Mate Series, 2.54mm Pitch 10 Way 2 Row Shrouded Right Angle PCB Header, Through Hole
IPT1-105-01-L-D-RA
Samtec

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
9.0A
Mounting Type:
Through Hole
Voltage Rating:
550.0 V , 777.0 V dc
Series:
IPT1
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Board to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.54mm
Number of Contacts:
10
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is IPT1 Mini Mate Series 2.54mm Pitch 10 Way 2 Row Shrouded Right Angle PCB Header Through Hole manufactured by Samtec. The manufacturer part number is IPT1-105-01-L-D-RA. It is supplied as shrouded. The product has a current rating of 9.0a. The product is available in through hole configuration. Moreover, the product has a nominal 550.0 v , 777.0 v dc voltage rating. The product ipt1, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It allows board to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 2.54mm. The product contains 10 contacts. The product is made from sturdy phosphor bronze materials.

pdf icon
Shrouded Power Connectors IPT1 and IPS1 Series(Technical Reference)
pdf icon
Shrouded Power Terminal, Right Angle, IPT1 Series - Customer Drawing(Technical Reference)
