Molex Ultra-Fit Series, Series Number 172316, 3.5mm Pitch 4 Way 2 Row Shrouded Right Angle PCB Header, Through Hole

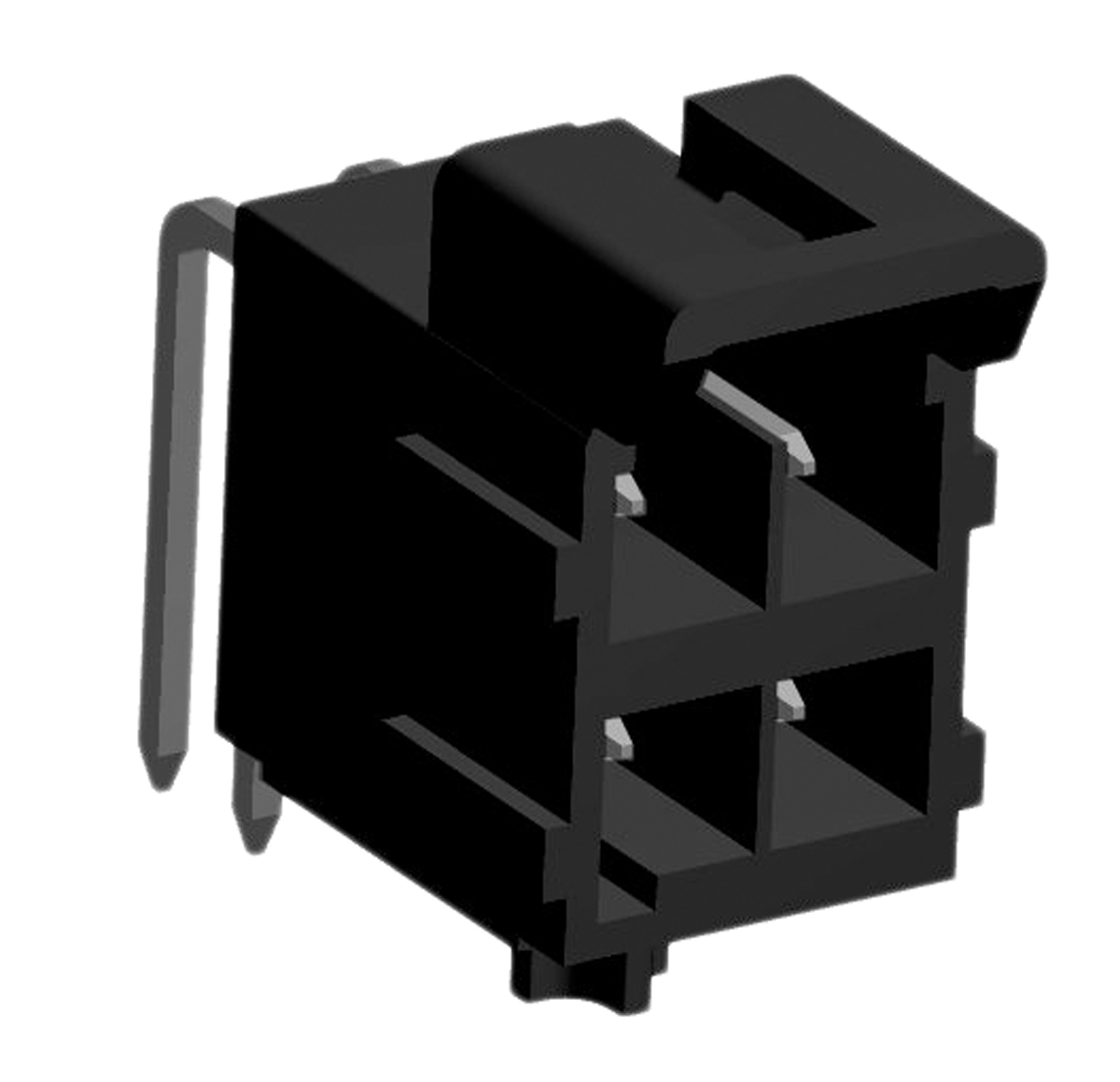

172316-1104 Molex Ultra-Fit Series, Series Number 172316, 3.5mm Pitch 4 Way 2 Row Shrouded Right Angle PCB Header, Through Hole
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Number of Contacts:
4
Current Rating:
14.0A
Mounting Type:
Through Hole
Voltage Rating:
400.0 V
Series:
Ultra-Fit
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Tin
Pitch:
3.5mm
Contact Material:
Copper Alloy
Series Number:
172316
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
60.0µin (1.52µm)
Number of Positions:
4
Overall Contact Length:
-
Insulation Height:
0.534" (13.56mm)
Voltage Rating:
600VAC/DC
REACH Status:
REACH info available upon request
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tray
Row Spacing - Mating:
0.181" (4.60mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Vendor Undefined
Contact Finish Thickness - Mating:
60.0µin (1.52µm)
Fastening Type:
Latch Holder
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.138" (3.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
Ultra-Fit 172316
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
172316
ECCN:
EAR99
RoHs Compliant
