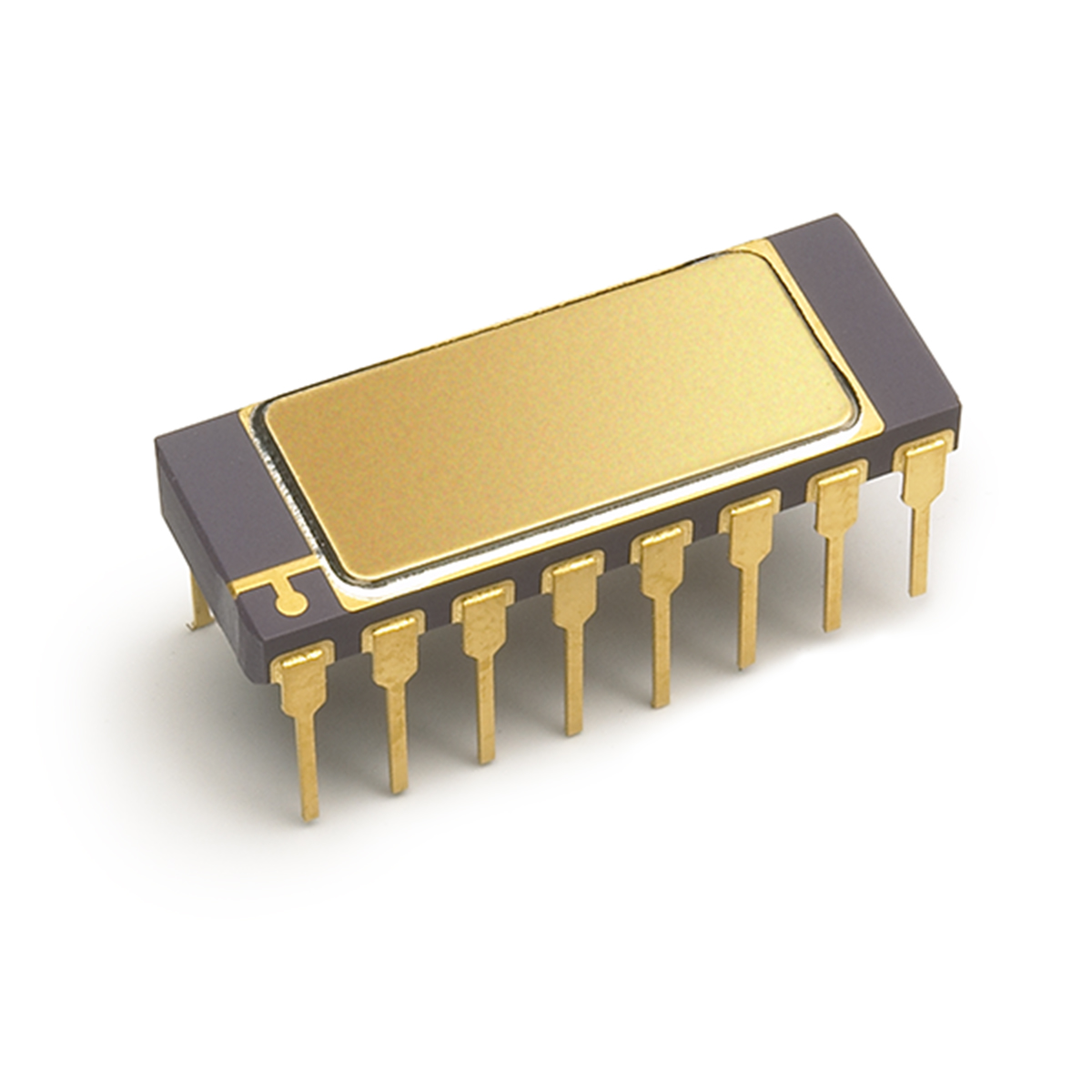

Broadcom 6N134 DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin DIP

  • Enrgtech Part No: ET16890653
  • |
  • Manufacturer Part No:

    6N134

  • |
  • Manufacturer: Broadcom
6N134 Broadcom DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin DIP
6N134 Broadcom DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin DIP
Broadcom

Product Information

Maximum Forward Voltage:
1.9V
Isolation Voltage:
1.5kV dc
Minimum Operating Temperature:
-55°C
Series:
6N134
Typical Rise Time:
35ns
Typical Fall Time:
35ns
Automotive Standard:
No
Minimum Current Transfer Ratio:
100%
Maximum Operating Temperature:
125°C
Input Current Type:
DC
Package Type:
DIP
Standards/Approvals:
No
Number of Channels:
2
Number of Pins:
16
Product Type:
Optocoupler
Maximum Input Current:
20mA
Logic Output:
Yes
Mount Type:
Surface Mount
RoHs Compliant
Checking for live stock

This is DC Input Transistor Output Quad Optocoupler Through Hole 16-Pin DIP manufactured by Broadcom. The manufacturer part number is 6N134. It also carries 1.9v of maximum forward voltage. It has 1.5kv dc isolation voltage. Whereas, the minimum operating temperature of the product is -55°c. The product 6n134, is a highly preferred choice for users. It has a typical 35ns rise time . It has a typical 35ns fall time . The product complies with automotive standard - no. In addition, it has a minimum 100% current transfer ratio . It has a maximum operating temperature of 125°c. Its input is of dc type . The package is a sort of dip. It is supplied with 2 channels. It is comprised of 16 pins. optocoupler is a versatile product designed to provide user-defined applications. While its maximum input current includes 20ma. It includes a logic output yes . It has a surface mount type mount .
