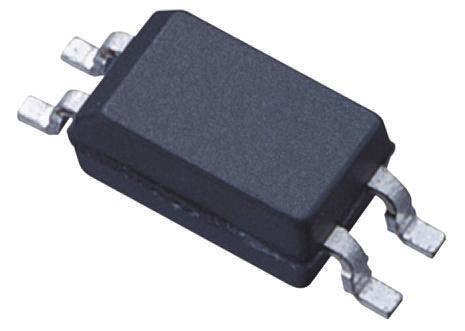

Toshiba TLP292(BL AC Input Infrared LED Output Optocoupler, Surface Mount, 4-Pin SOIC

TLP292-BL Toshiba TLP292(BL AC Input Infrared LED Output Optocoupler, Surface Mount, 4-Pin SOIC
TLP292-BL Toshiba TLP292(BL AC Input Infrared LED Output Optocoupler, Surface Mount, 4-Pin SOIC
Toshiba

Product Information

Maximum Forward Voltage:
1.4V
Isolation Voltage:
3750Vrms
Minimum Operating Temperature:
-55°C
Series:
TLP
Typical Rise Time:
2μs
Typical Fall Time:
3μs
Minimum Current Transfer Ratio:
200%
Maximum Current Transfer Ratio:
6%
Maximum Operating Temperature:
125°C
Input Current Type:
AC
Number of Pins:
4
Standards/Approvals:
CSA, UL, EN
Number of Channels:
1
Package Type:
SOIC
Product Type:
Optocoupler
Maximum Input Current:
50mA
Automotive Standard:
No
Mount Type:
Surface Mount
RoHs Compliant
Checking for live stock

This is AC Input Infrared LED Output Optocoupler Surface Mount 4-Pin SOIC manufactured by Toshiba. The manufacturer part number is TLP292(BL. It also carries 1.4v of maximum forward voltage. It has 3750vrms isolation voltage. Whereas, the minimum operating temperature of the product is -55°c. The product tlp, is a highly preferred choice for users. It has a typical 2μs rise time . It has a typical 3μs fall time . In addition, it has a minimum 200% current transfer ratio . It has a maximum 6% current transfer ratio . It has a maximum operating temperature of 125°c. Its input is of ac type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of soic. optocoupler is a versatile product designed to provide user-defined applications. While its maximum input current includes 50ma. The product complies with automotive standard - no. It has a surface mount type mount .

pdf icon
TLP292, Photocoupler, InGaAs Infrared LED & Photo-Transistor Data Sheet(Technical Reference)
pdf icon
Photocouplers and Photorelays(Technical Reference)
