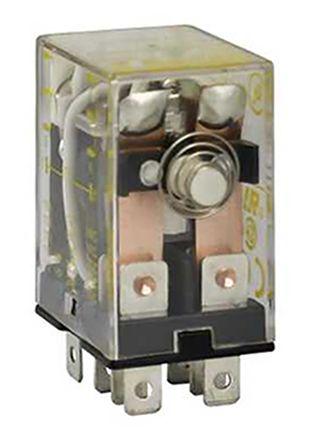

Schneider Electric DPDT Plug In Non-Latching Relay, 120V ac Coil, 10 A

8501RS42V20 Schneider Electric DPDT Plug In Non-Latching Relay, 120V ac Coil, 10 A
Schneider Electric

Product Information

Maximum Switching Voltage DC:
30V
Dimensions:
27.94 x 21.08 x 36.1mm
Mounting Type:
Plug In
Operating Temperature Range:
-40 → +70°C
Coil Power:
1.3W
Maximum Switching Current AC:
10 A
Coil Voltage:
120 V ac
Length:
27.9mm
Height:
36.1mm
Maximum Switching Current DC:
10 A
Application:
General Purpose
Depth:
21.1mm
Maximum Switching Voltage AC:
240V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1/2 hp
Terminal Type:
PCB Pin
Contact Configuration:
DPDT
Maximum Operating Temperature:
+70°C
Contact Material:
Silver Alloy
Checking for live stock

This is DPDT Plug In Non-Latching Relay 120V ac Coil 10 A manufactured by Schneider Electric. The manufacturer part number is 8501RS42V20. While it carries 30v of maximum DC switching voltage. The given dimensions of the product include 27.94 x 21.08 x 36.1mm. The product is available in plug in configuration. The product has -40 → +70°c of operating temperature range. Robust coil power of 1.3w. It has a maximum 10 a switching current AC . The coil voltage of the product is 120 v ac. Its accurate length is 27.9mm. In addition, the height is 36.1mm. It has a minimum 10 a DC switching current . Applications Information involves general purpose. The product comes in 21.1mm depth. It has a maximum AC switching voltage of 240v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 1/2 hp. The terminal is a pcb pin type. The contact is equipped with dpdt configuration. It has a maximum operating temperature of +70°c. The product is made from sturdy silver alloy materials.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship 8501RS42V20 Internationally to many countries around the world.
Yes. You can also search 8501RS42V20 on website for other similar products.
We accept all major payment methods for all products including ET13996802. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13996802 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Schneider Electric" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13996802.
You can order Schneider Electric brand products with 8501RS42V20 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Non-Latching Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schneider Electric DPDT Plug In Non-Latching Relay, 120V ac Coil, 10 A. You can also check on our website or by contacting our customer support team for further order details on Schneider Electric DPDT Plug In Non-Latching Relay, 120V ac Coil, 10 A.
