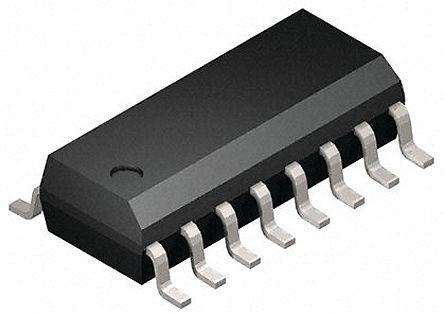

Vishay DG4052EEY-T1-GE3, Multiplexer Switch IC Quad 4:1, 3 → 16 V, 16-Pin SOIC

DG4052EEY-T1-GE3 Vishay , Multiplexer Switch IC Quad 4:1, 3 → 16 V, 16-Pin SOIC
Vishay

Product Information

Dimensions:
10 x 4 x 1.55mm
Width:
4mm
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Package Type:
SOIC
Configuration:
Quad 4:1
Maximum Operating Temperature:
+125 °C
Number of Outputs per Element:
2
Multiplexer Architecture:
4:1
Output Signal Type:
Single Ended
Turn-On Time:
107ns
Input Signal Type:
Single Ended
Length:
10mm
Number of Inputs per Element:
8
Pin Count:
16
Typical Dual Supply Voltage:
±3 → ±8V
Mounting Type:
Surface Mount
Maximum Power Dissipation:
640 mW
Typical Single Supply Voltage:
3 → 16 V
Height:
1.55mm
Minimum Operating Temperature:
-40 °C
Switch Type:
Analogue Multiplexer
RoHs Compliant
Checking for live stock

This is Multiplexer Switch IC Quad 4:1 3 → 16 V 16-Pin SOIC manufactured by Vishay. The manufacturer part number is DG4052EEY-T1-GE3. The given dimensions of the product include 10 x 4 x 1.55mm. Furthermore, the product is 4mm wide. It is a type of dual, single power supply. It comprises 2 channels per chip. The package is a sort of soic. The product is available in quad 4:1 configuration. It has a maximum operating temperature of +125 °c. It includes 2 outputs per element . However, it has 4:1 multiplexer architecture . The output signal is a kind of single ended. With 107ns turn-on time it is can perform more quickly . The input signal is a kind of single ended signal. Its accurate length is 10mm. Moreover, the product has 8 input(s) per element . It contains 16 pins. While ±3 → ±8v is the typical dual supply voltage. The product is available in surface mount configuration. Provides up to 640 mw maximum power dissipation. It has a typical single supply voltage of 3 → 16 v. In addition, the height is 1.55mm. Whereas, the minimum operating temperature of the product is -40 °c. Quality product with a analogue multiplexer switch type.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
