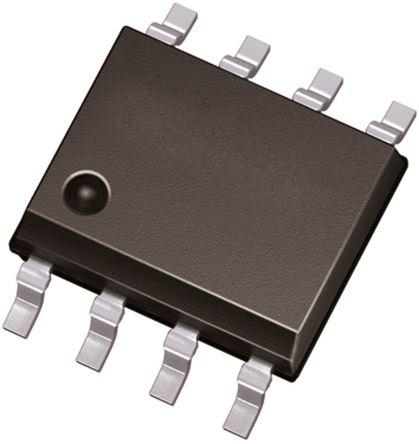

Infineon BTS4175SGA, Analogue Switch Single 4:1 High Side, 52 V, 8-Pin DSO

BTS4175SGA Infineon , Analogue Switch Single 4:1 High Side, 52 V, 8-Pin DSO
Infineon

Product Information

Number of Outputs per Element:
1
Output Signal Type:
Open Drain
Dimensions:
5 x 4 x 1.65mm
Mounting Type:
Surface Mount
Input Signal Type:
CMOS, Schmitt Trigger
Power Supply Type:
Single
Maximum Power Dissipation:
1.5 W
Number of Channels per Chip:
1
Multiplexer Architecture:
4:1
Height:
1.65mm
Typical Single Supply Voltage:
52 V
Width:
4mm
Length:
5mm
Package Type:
DSO
Minimum Operating Temperature:
-40 °C
Number of Inputs per Element:
4
Configuration:
Single 4:1
Maximum Operating Temperature:
+150 °C
Pin Count:
8
Switch Type:
High Side
RoHs Compliant
Checking for live stock

This is Analogue Switch Single 4:1 High Side 52 V 8-Pin DSO manufactured by Infineon. The manufacturer part number is BTS4175SGA. It includes 1 outputs per element . The output signal is a kind of open drain. The given dimensions of the product include 5 x 4 x 1.65mm. The product is available in surface mount configuration. The input signal is a kind of cmos, schmitt trigger signal. It is a type of single power supply. Provides up to 1.5 w maximum power dissipation. It comprises 1 channels per chip. However, it has 4:1 multiplexer architecture . In addition, the height is 1.65mm. It has a typical single supply voltage of 52 v. Furthermore, the product is 4mm wide. Its accurate length is 5mm. The package is a sort of dso. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product has 4 input(s) per element . The product is available in single 4:1 configuration. It has a maximum operating temperature of +150 °c. It contains 8 pins. Quality product with a high side switch type.

pdf icon
BTS4175SGA Smart High-Side Power Switch Datasheet(Technical Reference)
