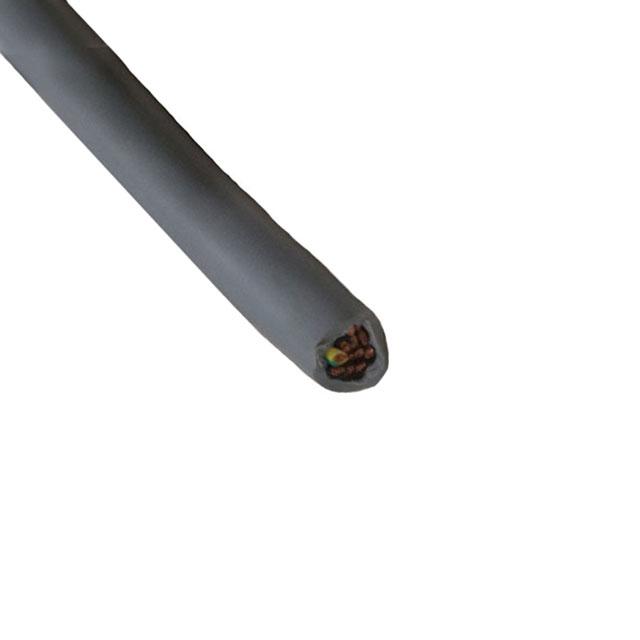

UNSHIELDED CABLE 12 CONDUCTORS 1.5MM² GR

471215YY-GE033 UNSHIELDED CABLE 12 CONDUCTORS 1.5MM² GR
471215YY GE033
Alpha Wire

Product Information

Screened/Unscreened:
Unscreened
Standards Met:
CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006
Control Cable Type:
YY
Voltage Rating:
300/500 V
Conductor Material:
Bare Copper
Series:
Pro-Met
Minimum Bend Radius:
10 x Cable Diameter (Dynamic) mm, 4 x Cable Diameter (Static) mm
Fire Behaviour:
IEC 60332-1
Oil Resistant:
Yes
Core Strands:
28/0.25 mm
Sheath Colour:
Grey
Length:
100m
Insulation Material:
PVC
Minimum Operating Temperature:
(Dynamic) -30 °C, (Static) -40°C
Number of Cores:
12
Conductor Resistance:
13.3 Ω/km @ 20°C
Cross Sectional Area:
1.5 mm²
Outer Diameter:
1.52mm
Maximum Operating Temperature:
(Dynamic) +70 °C, (Static) +80°C
Sheath Material:
PVC
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
28/0.0098"
Operating Temperature:
-40°C ~ 80°C
Usage:
Industrial
Number of Conductors:
12
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
15 AWG
Shield Type:
-
Jacket (Insulation) Thickness:
0.0445" (1.130mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
328.1' (100.0m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
25 Weeks
Shield Coverage:
-
Features:
Chemical Resistant, Oil Resistant, UV Resistant
Jacket (Insulation) Diameter:
0.479" (12.17mm)
Conductor Material:
Copper, Bare
Series:
Pro-Met®
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
-
ECCN:
EAR99
Base Product Number:
471215YY
Jacket Color:
Gray
RoHs Compliant
Checking for live stock

This is UNSHIELDED CABLE 12 CONDUCTORS 1.5MM² GR manufactured by Alpha Wire. The manufacturer part number is 471215YY GE033. Screen Options - unscreened. The product complies with all safety standards, such as ce certified, din en 50290-2-22, din vde 0295 class 5, en 60228 class 5, iec 60332-1, iec certified, reach ec 1907/2006. It includes yy type control cable . Moreover, the product has a nominal 300/500 v voltage rating. The conductor is made from bare copper material. The product pro-met, is a highly preferred choice for users. It bears 10 x cable diameter (dynamic) mm, 4 x cable diameter (static) mm of minimum bend radius. The product has a iec 60332-1 fire behaviour. Additionally, it is oil resistant yes . The core strands are 28/0.25 mm. The sheath has an adorable grey colour. Its accurate length is 100m. It has a robust pvc insulation material. Whereas, the minimum operating temperature of the product is (dynamic) -30 °c, (static) -40°c. The product consists of 12 cores. The conductor has 13.3 ω/km @ 20°c resistance. The product has 1.5 mm² cross section area. Its outer diameter is 1.52mm. It has a maximum operating temperature of (dynamic) +70 °c, (static) +80°c. The sheath is constructed from durable and adorable pvc material. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It also features a 28/0.0098" conductor strand. The product has -40°c ~ 80°c operating temperature range. The product's typical Applications include uses in industrial. It features 12 conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 15 awg. Furthermore, the insulated jacket is a 0.0445" (1.130mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 328.1' (100.0m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 25 weeks standard lead time. The splendid features of the product include chemical resistant, oil resistant, uv resistant. The diameter of the jacket is 0.479" (12.17mm). The conductor is made from copper, bare material. The product pro-met®, is a highly preferred choice for users. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is designated with the ear99 code number. Moreover, it corresponds to 471215yy, a base product number of the product. It comes in nice gray colour.
