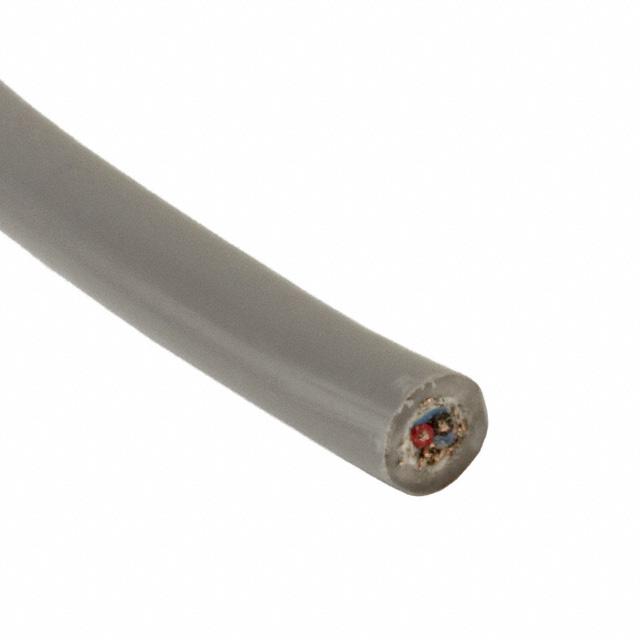

Alpha Wire 86401CY SL005

86401CY-SL005 Alpha Wire 86401CY SL005
86401CY SL005
Alpha Wire

Product Information

American Wire Gauge:
28 AWG
Standards Met:
CE
Cable Shape:
Twisted Pair
Series:
XTRA-GUARD FLEX
Shield Type:
SF/UTP
Voltage Rating:
300 V
Core Strands:
7/0.13 mm
Sheath Colour:
Grey
Length:
30m
Screened/Unscreened:
Screened
Number of Pairs:
1
Outer Sheath Material:
PVC
Number of Cores:
2
Characteristic Impedance:
70 Ω
Outer Diameter:
4.72mm
Cross Sectional Area:
0.09 mm²
Ratings:
ISO 10993, UL Style 2661
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
7/36
Operating Temperature:
-
Usage:
-
Number of Conductors:
2 (1 Pair Twisted)
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
28 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0450" (1.143mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
8 Weeks
Shield Coverage:
100%, 85%
Features:
Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter:
0.186" (4.72mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® Flex
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Aluminum; Copper, Tinned
ECCN:
EAR99
Base Product Number:
86401CY
Jacket Color:
Slate
RoHs Compliant
Checking for live stock

This is manufactured by Alpha Wire. The manufacturer part number is 86401CY SL005. Features 28 awg - American Wire Gauge. The product complies with all safety standards, such as ce. Moreover, this cable has a twisted pair shape. The product xtra-guard flex, is a highly preferred choice for users. The item is shielded with a sf/utp. Moreover, the product has a nominal 300 v voltage rating. The core strands are 7/0.13 mm. The sheath has an adorable grey colour. Its accurate length is 30m. Screen Options - screened. It includes 1 pair(s) . Whereas the outer sheath is manufactured from pvc material. The product consists of 2 cores. The typical characteristic impedance includes 70 ω. Its outer diameter is 4.72mm. The product has 0.09 mm² cross section area. It is rated with iso 10993, ul style 2661. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It also features a 7/36 conductor strand. It features 2 (1 pair twisted) conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 28 awg. The item is shielded with a foil, braid. Furthermore, the insulated jacket is a 0.0450" (1.143mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 100.0' (30.5m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 8 weeks standard lead time. It covers shielding capability up to 100%, 85%. The splendid features of the product include biological compatibility, drain wire. The diameter of the jacket is 0.186" (4.72mm). The conductor is made from copper, tinned material. The product xtra-guard® flex, is a highly preferred choice for users. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is shielded with a robust aluminum; copper, tinned shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to 86401cy, a base product number of the product. It comes in nice slate colour.
