Automotive Standard:
AEC-Q100 Grade 2
Instruction Set Architecture:
ARM V7-A
Data Bus Width:
32bit
Minimum Supply Voltage:
5.5V
Maximum Supply Voltage:
2.7V
Series:

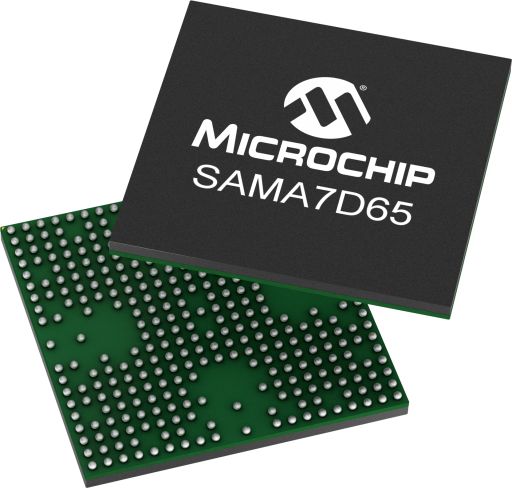

SAMA7D6
Maximum Clock Frequency:
1GHz
Height:
1.2mm
Device Core:
ARM Cortex A7
Width:
14 mm
Length:
14mm
Package Type:
TFBGA
Interface Type:
LPDDR3, NAND, DDR3L, CAN FD, RGB, DDR2, DDR3, Ethernet, MMC, LVDS, USB, LPDDR2, SPI, MIPI-DSI, I3C
Minimum Operating Temperature:
-40°C
Standards/Approvals:
IEEE 1588, IEEE 802.1AS, FIPS PUB 140-2, FIPS PUB 46-3, FIPS PUB 197, IEEE 802.1Qav, IEEE 802.3az, FIPS PUB 140-3
Number of Cores:
1
Product Type:
Microprocessor
Maximum Operating Temperature:
125°C
Pin Count:
427
Mount Type:
Surface
