Automotive Standard:
AEC-Q100 Grade 2
Data Bus Width:
16bit
Instruction Set Architecture:
ARM
Series:

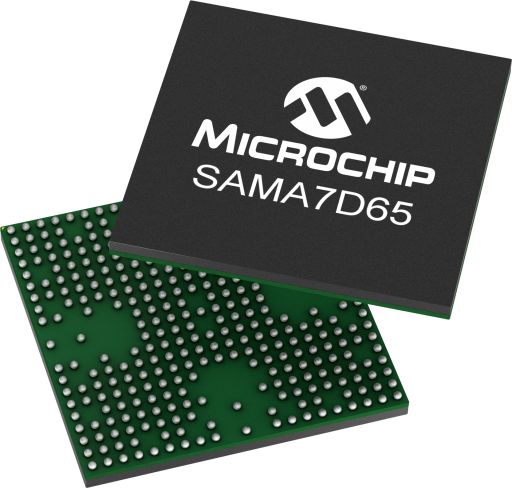

SAMA7D6
Maximum Clock Frequency:
1GHz
Height:
1.2mm
Device Core:
ARM Cortex A7
Width:
14 mm
Length:
14mm
Package Type:
TFBGA
Interface Type:
NAND, RMII, MMC, PWM, QSPI, LVDS, RGMII, CAN FD, I2C, RGB, I3C, MIPI-DSI, ADC, USB, SPI, SDIO, UART
Minimum Operating Temperature:
-40°C
Standards/Approvals:
FIPS PUB 140-3, FIPS Publications 180-2, FIPS PUB 46-3, IEEE802.1Qav, FIPS PUB 197, FIPS PUB 140-2, IEEE 802.3az, IEEE802.1AS
Number of Cores:
1
Product Type:
Microcontroller
Maximum Operating Temperature:
125°C
Pin Count:
427
Mount Type:
Surface
