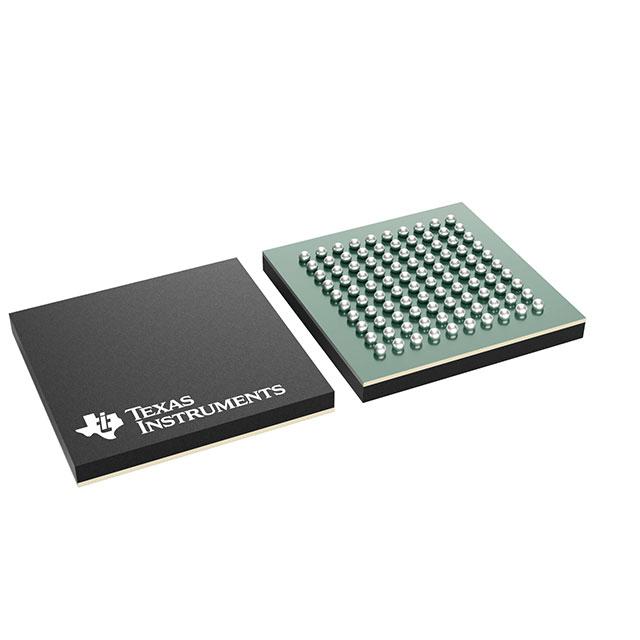

Texas Instruments TMS320F2806NMFAR

TMS320F2806NMFAR Texas Instruments
Texas Instruments

Product Information

HTSUS:
8542.31.0001
RoHS Status:
Not applicable
Program Memory Size:
64KB (32K x 16)
Peripherals:
POR, PWM, WDT
Operating Temperature:
-40°C ~ 85°C (TA)
Voltage - Supply (Vcc/Vdd):
1.71V ~ 1.89V, 3.14V ~ 3.47V
Package / Case:
100-LFBGA
RAM Size:
10K x 16
Data Converters:
A/D 16x12b
Program Memory Type:
FLASH
edacadModel:
TMS320F2806NMFAR Models
Connectivity:
CANbus, I2C, SCI, SPI, UART/USART
edacadModelUrl:
/en/models/15856537
EEPROM Size:
-
Oscillator Type:
Internal
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Number of I/O:
35
standardLeadTime:
18 Weeks
DigiKey Programmable:
Not Verified
Core Size:
32-Bit Single-Core
Mounting Type:
Surface Mount
Series:
C2000™ C28x Piccolo™
Supplier Device Package:
100-NFBGA (10x10)
Packaging:
Tape & Reel (TR)
Core Processor:
C28x
Speed:
100MHz
Base Product Number:
TMS320
ECCN:
3A991A2
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is TMS320F2806NMFAR. It is assigned with possible HTSUS value of 8542.31.0001. The product is not applicable. In addition, 64kb (32k x 16) is the program memory size. It has supplied with other peripherals, such as por, pwm, wdt. The product has -40°c ~ 85°c (ta) operating temperature range. The supply voltage of a bespoke product includes 1.71v ~ 1.89v, 3.14v ~ 3.47v. Moreover, the product comes in 100-lfbga. The product has typical 10k x 16 RAM size. The typical data converters include a/d 16x12b. It is a flash program memory type. It provides connectivity solutions through canbus, i2c, sci, spi, uart/usart. The product is a internal type of oscillator. Its typical moisture sensitivity level is 3 (168 hours). 35 is the I/O value of the product. It has a long 18 weeks standard lead time. It has a core size 32-bit single-core. The product is available in surface mount configuration. The product c2000™ c28x piccolo™, is a highly preferred choice for users. 100-nfbga (10x10) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. c28x is the product's core processor. It has a robust speed of 100mhz. Moreover, it corresponds to tms320, a base product number of the product. The product is designated with the 3a991a2 code number.

pdf icon
Multiple Parts 28/Jul/2022(PCN Assembly/Origin)
pdf icon
TMS320F280x, TMS320C280x, TMS320F2801x(Datasheets)
