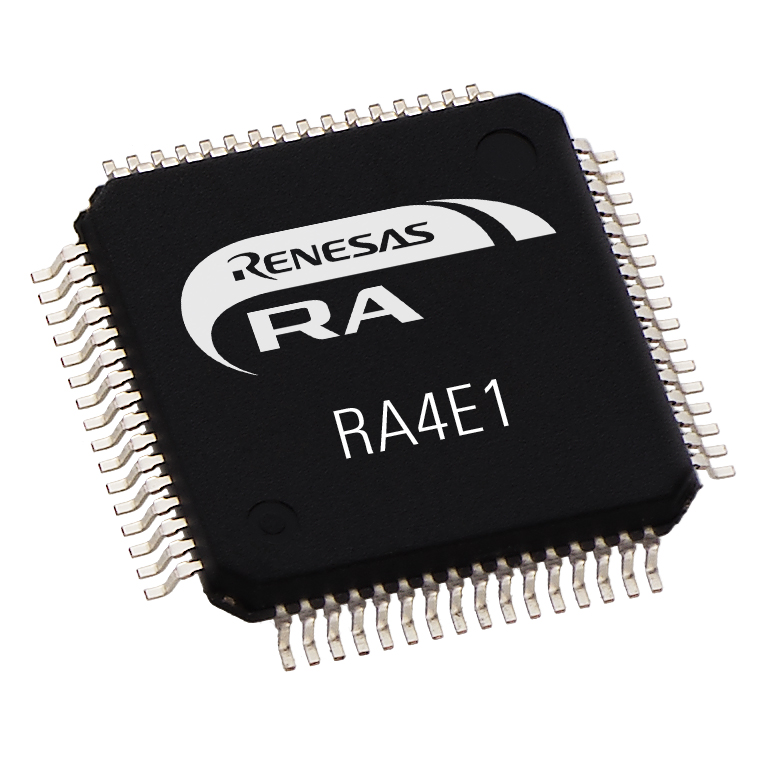

MCU RA4 ARM CM33 100MHZ 512K/128K QFP64

R7FA4E10D2CFM-AA0 MCU RA4 ARM CM33 100MHZ 512K/128K QFP64
R7FA4E10D2CFM#AA0
Renesas Electronics

Product Information

Dimensions:
10 x 10 x 1.4mm
Number of I2C Channels:
1
Number of USART Channels:
0
USB Channels:
1
Program Memory Size:
512 kB
RAM Size:
128 kB
Data Bus Width:
32bit
Instruction Set Architecture:
CISC
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
100MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
1
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0

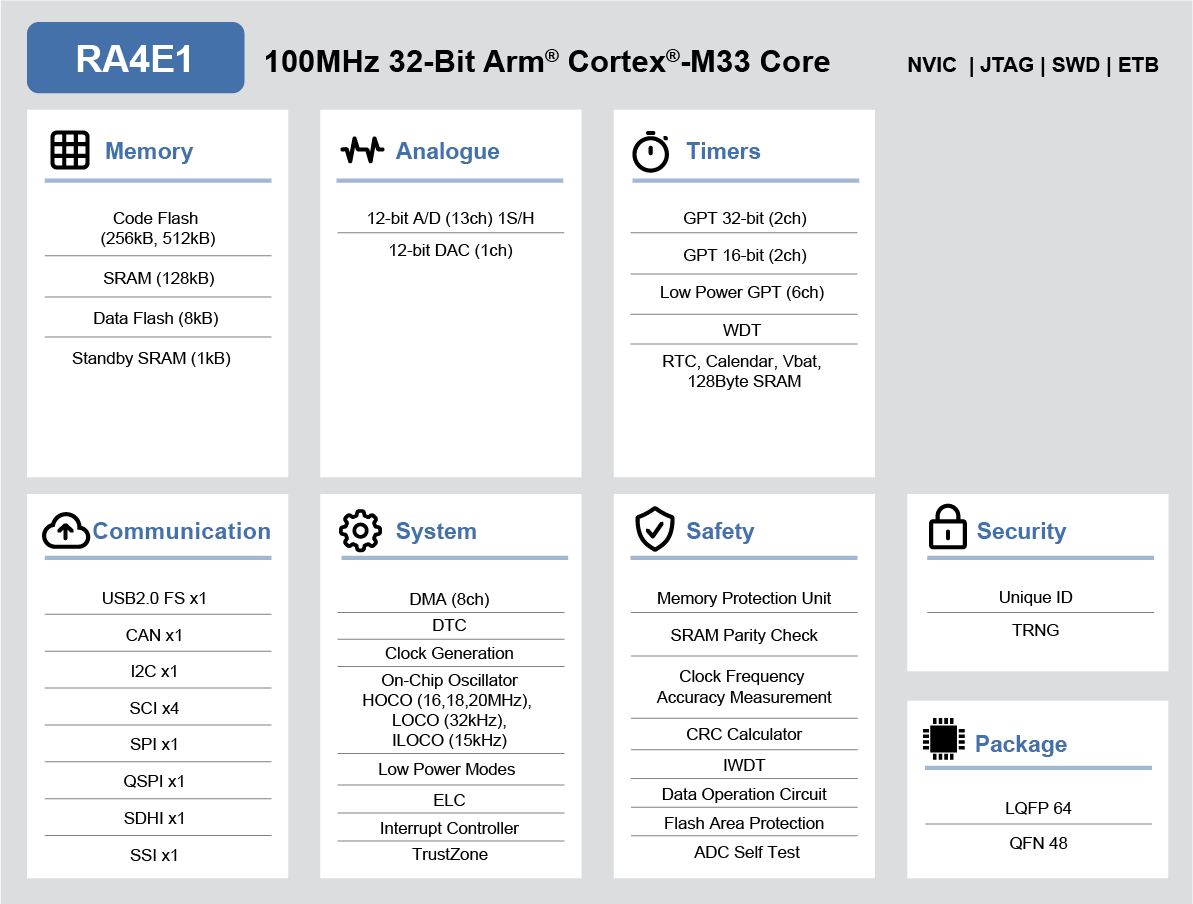

Family Name:
RA4E1
Device Core:
ARM Cortex M33
Number of ADC Units:
1
Pin Count:
64
Pulse Width Modulation:
16-bit x 2 , 32-bit x 2
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.4mm
Typical Operating Supply Voltage:
2.7 → 3.6 V
ADCs:
9 x 12 bit
Number of CAN Channels:
1
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is MCU RA4 ARM CM33 100MHZ 512K/128K QFP64 manufactured by Renesas Electronics. The manufacturer part number is R7FA4E10D2CFM#AA0. The given dimensions of the product include 10 x 10 x 1.4mm. Moreover, it comprises 1 I2C channels. It contains 0 USART channels. The product integrates 1 USB channels. In addition, 512 kb is the program memory size. The product has typical 128 kb RAM size. Moreover, the data bus width includes 32bit. The instruction set has cisc architecture. It is a flash program memory type. The package is a sort of lqfp. It features 100mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 1 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family ra4e1. On the other hand, the arm cortex m33 is the device core. It contains 1 ADC units. It contains 64 pins. The product carries 16-bit x 2 , 32-bit x 2 of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.4mm. It has 2.7 → 3.6 v of typical operating supply voltage. The ADCs included 9 x 12 bit. Moreover, it consists of 1 CAN channels. Furthermore, it is composed of 1 SPI channels.
