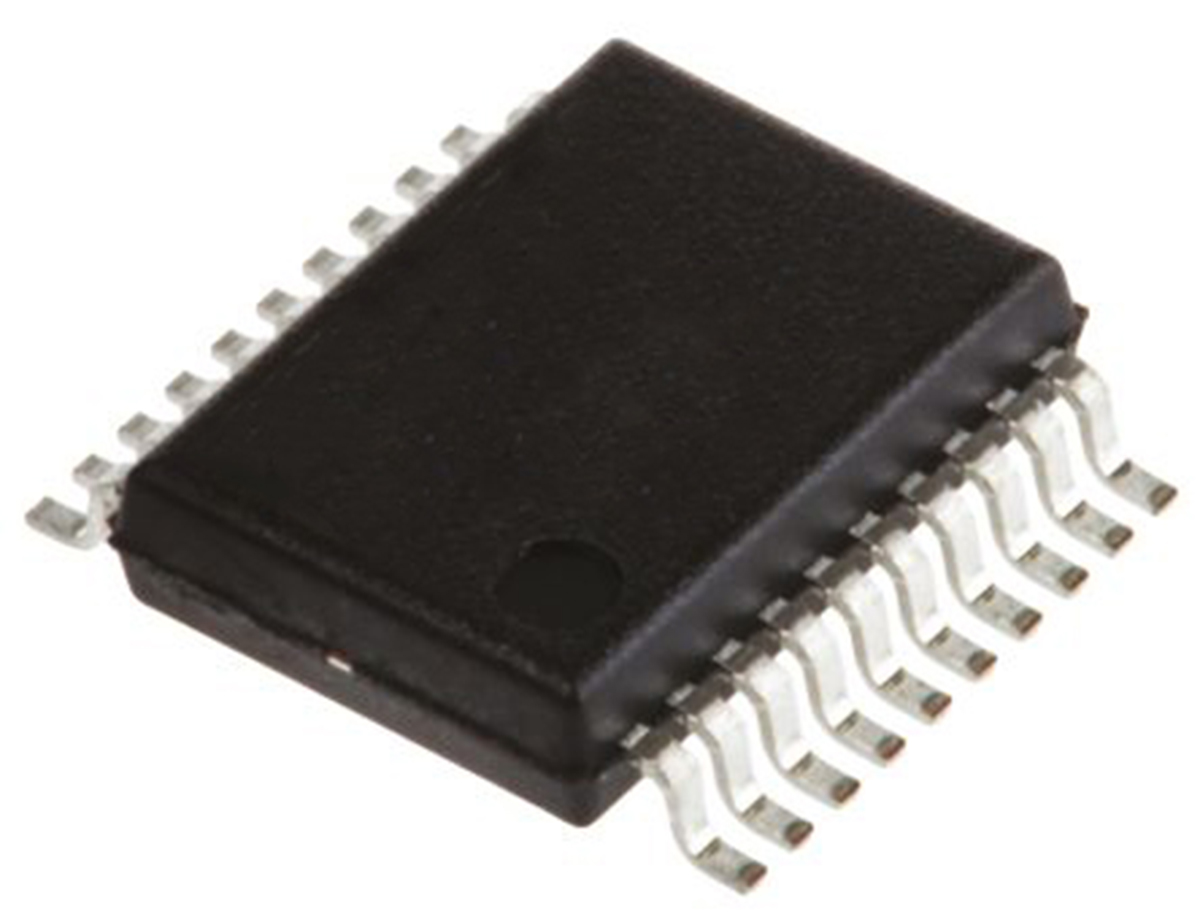

Renesas Electronics R5F10368ASP, 16bit RL78 Microcontroller, 24MHz, 8 kB Flash, 20-Pin SSOP

R5F10368ASP Renesas Electronics , 16bit RL78 Microcontroller, 24MHz, 8 kB Flash, 20-Pin SSOP
Renesas Electronics

Product Information

Dimensions:
6.5 x 4.4 x 1.15mm
Number of I2C Channels:
2
Number of USART Channels:
0
USB Channels:
0
Width:
4.4mm
Program Memory Size:
8 kB
RAM Size:
768 kB
Data Bus Width:
16bit
Instruction Set Architecture:
CISC Harvard
Program Memory Type:
Flash
Package Type:
SSOP
Maximum Frequency:
24MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
1
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
RL78/G12
Device Core:
RL78
Length:
6.5mm
Number of ADC Units:
1
Pin Count:
20
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.15mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
11 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is 16bit RL78 Microcontroller 24MHz 8 kB Flash 20-Pin SSOP manufactured by Renesas Electronics. The manufacturer part number is R5F10368ASP. The given dimensions of the product include 6.5 x 4.4 x 1.15mm. Moreover, it comprises 2 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 4.4mm wide. In addition, 8 kb is the program memory size. The product has typical 768 kb RAM size. Moreover, the data bus width includes 16bit. The instruction set has cisc harvard architecture. It is a flash program memory type. The package is a sort of ssop. It features 24mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 1 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family rl78/g12. On the other hand, the rl78 is the device core. Its accurate length is 6.5mm. It contains 1 ADC units. It contains 20 pins. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.15mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 11 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 2 SPI channels.
