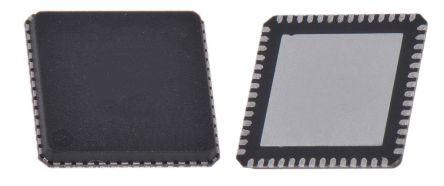

Cypress Semiconductor Microcontroller, 32bit ARM Cortex M0, 48MHz, 256 kB Flash QFN, 56-Pin CY8C4248LQI-BL573

CY8C4248LQI-BL573 Cypress Semiconductor Microcontroller, 32bit ARM Cortex M0, 48MHz, 256 kB Flash QFN, 56-Pin
Cypress Semiconductor

Product Information

Dimensions:
7 x 7 x 0.5mm
Number of I2C Channels:
2
Number of USART Channels:
0
USB Channels:
1
Width:
7mm
Program Memory Size:
256 kB
Number of PWM Units:
1 x 16 bit
RAM Size:
32 kB
Number of Timers:
4
Data Bus Width:
32bit
Instruction Set Architecture:
Thumb-2
Program Memory Type:
Flash
Package Type:
QFN
Maximum Frequency:
48MHz
Data Rate:
1000kbit/s
Number of PCI Channels:
0
Number of LIN Channels:
1
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
CY8C4200
Device Core:
ARM Cortex M0
Length:
7mm
Timer Resolution:
16bit
Timers:
1 (4 x 16 bit)
Number of ADC Units:
1
Pin Count:
56
Pulse Width Modulation:
1 (4 x 16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
0.5mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
1 x 12 bit
Number of CAN Channels:
1
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is Microcontroller 32bit ARM Cortex M0 48MHz 256 kB Flash QFN 56-Pin manufactured by Cypress Semiconductor. The manufacturer part number is CY8C4248LQI-BL573. The given dimensions of the product include 7 x 7 x 0.5mm. Moreover, it comprises 2 I2C channels. It contains 0 USART channels. The product integrates 1 USB channels. Furthermore, the product is 7mm wide. In addition, 256 kb is the program memory size. Furthermore, it is composed of 1 x 16 bit PWM units. The product has typical 32 kb RAM size. It comprises 4 timers. Moreover, the data bus width includes 32bit. The instruction set has thumb-2 architecture. It is a flash program memory type. The package is a sort of qfn. It features 48mhz of maximum frequency. It has a maximised data speed rate of 1000kbit/s. It contains 0 PCI channel . It includes 1 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family cy8c4200. On the other hand, the arm cortex m0 is the device core. Its accurate length is 7mm. The timer has 16bit resolution. Timers options include 1 (4 x 16 bit). It contains 1 ADC units. It contains 56 pins. The product carries 1 (4 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 0.5mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 1 x 12 bit. Moreover, it consists of 1 CAN channels. Furthermore, it is composed of 2 SPI channels.
