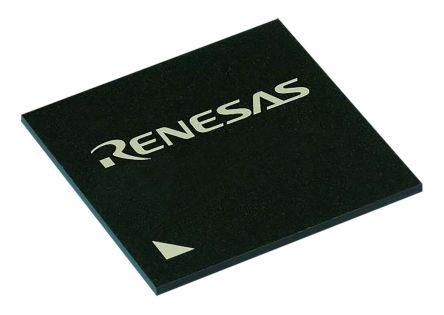

Renesas Electronics Microcontroller, 32bit RX, 50MHz, 512 kB Flash TFLGA, 145-Pin R5F52108BDLK#U0

R5F52108BDLK-U0 Renesas Electronics Microcontroller, 32bit RX, 50MHz, 512 kB Flash TFLGA, 145-Pin R5F52108BDLK#U0
Renesas Electronics

Product Information

Dimensions:
7 x 7 x 1.05mm
USB Channels:
0
Width:
7mm
Program Memory Size:
512 kB
Number of PWM Units:
0
RAM Size:
64 kB
ADC Channels:
16
Number of Timers:
3
Data Bus Width:
32bit
Instruction Set Architecture:
CISC Harvard
Program Memory Type:
Flash
Package Type:
TFLGA
Maximum Frequency:
50MHz
Maximum Operating Temperature:
+85 °C
Family Name:
RX210
Device Core:
RX
ADC Resolution:
12bit
Timer Resolution:
8 bit, 16bit
Timers:
1(16 x 16 bit), 2(2 x 8 bit)
Number of ADC Units:
1
Pin Count:
145
Mounting Type:
Surface Mount
Length:
7mm
Height:
1.05mm
Typical Operating Supply Voltage:
1.62 → 5.5 V
ADCs:
1 (16 x 12 bit)
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is Microcontroller 32bit RX 50MHz 512 kB Flash TFLGA 145-Pin manufactured by Renesas Electronics. The manufacturer part number is R5F52108BDLK#U0. The given dimensions of the product include 7 x 7 x 1.05mm. The product integrates 0 USB channels. Furthermore, the product is 7mm wide. In addition, 512 kb is the program memory size. Furthermore, it is composed of 0 PWM units. The product has typical 64 kb RAM size. Additionally, it is composed of 16 ADC channels. It comprises 3 timers. Moreover, the data bus width includes 32bit. The instruction set has cisc harvard architecture. It is a flash program memory type. The package is a sort of tflga. It features 50mhz of maximum frequency. It has a maximum operating temperature of +85 °c. The product belongs to a family rx210. On the other hand, the rx is the device core. The ADC has 12bit resolution. The timer has 8 bit, 16bit resolution. Timers options include 1(16 x 16 bit), 2(2 x 8 bit). It contains 1 ADC units. It contains 145 pins. The product is available in surface mount configuration. Its accurate length is 7mm. In addition, the height is 1.05mm. It has 1.62 → 5.5 v of typical operating supply voltage. The ADCs included 1 (16 x 12 bit). Whereas, the minimum operating temperature of the product is -40 °c.
