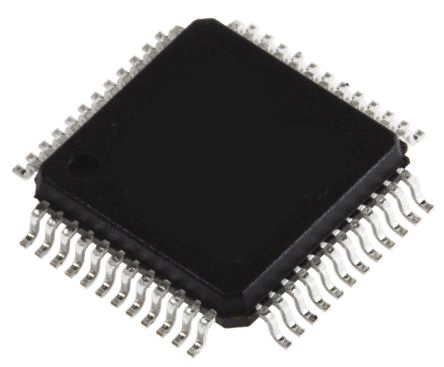

Renesas Electronics R5F523T5ADFL#30, 32bit RX Microcontroller, 40MHz, 128 kB Flash, 48-Pin LFQFP

R5F523T5ADFL-30 Renesas Electronics R5F523T5ADFL#30, 32bit RX Microcontroller, 40MHz, 128 kB Flash, 48-Pin LFQFP
Renesas Electronics

Product Information

Dimensions:
7.1 x 7.1 x 1.4mm
Number of I2C Channels:
3
Number of USART Channels:
0
USB Channels:
0
Width:
7.1mm
Program Memory Size:
128 kB
RAM Size:
12 kB
Data Bus Width:
32bit
Instruction Set Architecture:
CISC Harvard
Program Memory Type:
Flash
Package Type:
LFQFP
Maximum Frequency:
40MHz
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
RX23T
Device Core:
RX
Length:
7.1mm
Number of ADC Units:
1
Pin Count:
48
Pulse Width Modulation:
1 (4 x 8 bit), 1 (4 x 16 bit), 1 (6 x 16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.4mm
Typical Operating Supply Voltage:
2.7 → 5.5 V
ADCs:
10 x 12 bit
Number of CAN Channels:
0
Number of SPI Channels:
3
RoHs Compliant
Checking for live stock

This is 32bit RX Microcontroller 40MHz 128 kB Flash 48-Pin LFQFP manufactured by Renesas Electronics. The manufacturer part number is R5F523T5ADFL#30. The given dimensions of the product include 7.1 x 7.1 x 1.4mm. Moreover, it comprises 3 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 7.1mm wide. In addition, 128 kb is the program memory size. The product has typical 12 kb RAM size. Moreover, the data bus width includes 32bit. The instruction set has cisc harvard architecture. It is a flash program memory type. The package is a sort of lfqfp. It features 40mhz of maximum frequency. It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family rx23t. On the other hand, the rx is the device core. Its accurate length is 7.1mm. It contains 1 ADC units. It contains 48 pins. The product carries 1 (4 x 8 bit), 1 (4 x 16 bit), 1 (6 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.4mm. It has 2.7 → 5.5 v of typical operating supply voltage. The ADCs included 10 x 12 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 3 SPI channels.

pdf icon
Datasheet R5F523T5ADFL#30(Technical Reference)
