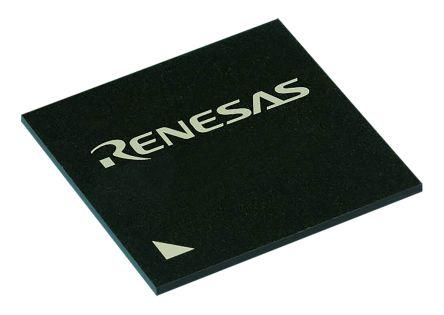

Renesas Electronics R5F51138ADLJ#2A, 32bit RX Microcontroller, 32MHz, 512 kB Flash, 100-Pin TFLGA

R5F51138ADLJ-2A Renesas Electronics R5F51138ADLJ#2A, 32bit RX Microcontroller, 32MHz, 512 kB Flash, 100-Pin TFLGA
Renesas Electronics

Product Information

Dimensions:
7 x 7 x 1.05mm
USB Channels:
1
Width:
7mm
Program Memory Size:
512 kB
RAM Size:
64 kB
ADC Channels:
17
Number of Timers:
3
Data Bus Width:
32bit
Instruction Set Architecture:
CISC Harvard
Program Memory Type:
Flash
Package Type:
TFLGA
Maximum Frequency:
32MHz
Maximum Operating Temperature:
+85 °C
Family Name:
RX113
Device Core:
RX
ADC Resolution:
12bit
Timer Resolution:
8 bit, 16 bit
Timers:
1(11 x 16 bit), 2(2 x 8 bit)
Number of ADC Units:
1
Pin Count:
100
Mounting Type:
Surface Mount
Length:
7mm
Height:
1.05mm
Typical Operating Supply Voltage:
1.8 → 3.6 V
ADCs:
1(17 x 12 bit)
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is 32bit RX Microcontroller 32MHz 512 kB Flash 100-Pin TFLGA manufactured by Renesas Electronics. The manufacturer part number is R5F51138ADLJ#2A. The given dimensions of the product include 7 x 7 x 1.05mm. The product integrates 1 USB channels. Furthermore, the product is 7mm wide. In addition, 512 kb is the program memory size. The product has typical 64 kb RAM size. Additionally, it is composed of 17 ADC channels. It comprises 3 timers. Moreover, the data bus width includes 32bit. The instruction set has cisc harvard architecture. It is a flash program memory type. The package is a sort of tflga. It features 32mhz of maximum frequency. It has a maximum operating temperature of +85 °c. The product belongs to a family rx113. On the other hand, the rx is the device core. The ADC has 12bit resolution. The timer has 8 bit, 16 bit resolution. Timers options include 1(11 x 16 bit), 2(2 x 8 bit). It contains 1 ADC units. It contains 100 pins. The product is available in surface mount configuration. Its accurate length is 7mm. In addition, the height is 1.05mm. It has 1.8 → 3.6 v of typical operating supply voltage. The ADCs included 1(17 x 12 bit). Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.


FAQs

Yes. You can also search R5F51138ADLJ#2A on website for other similar products.
We accept all major payment methods for all products including ET16788382. Please check your shopping cart at the time of order.
You can order Renesas Electronics brand products with R5F51138ADLJ#2A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Microcontrollers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics R5F51138ADLJ#2A, 32bit RX Microcontroller, 32MHz, 512 kB Flash, 100-Pin TFLGA. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics R5F51138ADLJ#2A, 32bit RX Microcontroller, 32MHz, 512 kB Flash, 100-Pin TFLGA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16788382 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Renesas Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16788382.
Yes. We ship R5F51138ADLJ#2A Internationally to many countries around the world.
